Furuno 1935 10.4" Color LCD 48 Nm Radar with 4Kw 3.5' Open Array
Bringing a new level of quality, operability and reliability into marine
radars

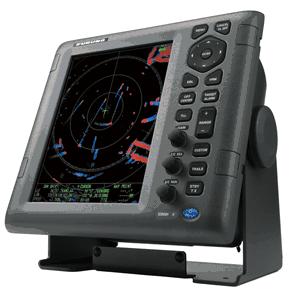

The MODEL1935 Radar is a high contrast 10.4" color LCD radar designed for a
wide range of vessels including pleasure craft, fishing boats and work boats.
This new radar offers crystal clear target presentation with automatic
Gain/Sea/Rain controls to deliver noise-free radar presentation. It features
superb detection of even small targets both at short and long range. It also
boasts all-new display modes which will assist you with navigating safely on all
waters.
Features
-
Easy-to-install 10.4" portrait color LCD (350 cd) display
-
Bonded LCD provides clear view in all weather conditions
-
Stable AIS/TT target-tracking with zoom display function
-
Full Screen Mode lets operators observe a wider range around the vessel
-
Enhanced auto tuning/gain/anti-clutter controls
-
Echoes in yellow, green, orange or multiple colors
Specifications
ANTENNA
| Peak Output Power |
4 kW |
| Type |
Open 100 cm (3.5') |
| Frequency |
9410?30 MHz (X-band) |
| Beam Width (Horizontal) |
2.4? |
| Beam Width (Vertical) |
22? |
| Range Scales |
0.0625-48nm |
| Antenna Rotation Speed |
24 rpm, 48 rpm (option) |
| Weight |
22kg |
DISPLAY
| Display Unit |
10.4'' color LCD (640 x 480, VGA) |
| Display Mode |
Head-up, Course-up*, North-up*, True view*, True motion**
* Heading data required
** Heading and position data required |
| Other Mode / Functions |
ARP/AIS display*1, Target tracking*2, User programmable keys, Echo
trails
*1 Requires AIS transponder/receiver installed
*2 Requires heading and speed data |
| Weight |
5.4 kg |
ENVIRONMENT
| Temperature |
Display unit : -15?C to +55?C
Antenna unit : -25?C to +55?C |
| Waterproofing |
Display unit : IP55
Antenna unit : IP26 |
POWER SUPPLY
| Power Supply / Consumption Current |
12-24 VDC: 6.8-3.3 A (24 rpm)
8.2-3.8 A (48 rpm) |
Equipment List
Standard
-
DISPLAY UNIT RDP-152-E
1 UNIT
-
ANTENNA RADIATOR XN10A
(3.5 ft)
1 UNIT
-
ANTENNA DRIVE UNIT RSB-0070-064 (24 PPM) or
RSB-0073-064 (48 RPM, optional)
1 UNIT
-
INSTALLATION MATERIALS including Antenna Cable and SPARE PARTS
1 SET
Interconnection Diagram
