Seastar  Baystar Compact Hydraulic Steering Kit (No Hose), HK4300A-3

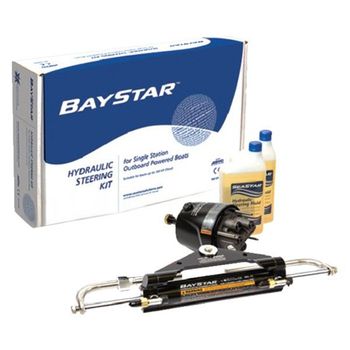

Seastar Baystar Compact Hydraulic Steering Kit (No Hose), HK4300A-3




Availability: Usually ships the next business day

Brand New with Factory Warranty

Seastar Baystar Compact Hydraulic Steering Kit (No Hose), HK4300A-3
hk4300a-3List Price: $US 999.00Our Price: $US 579.00
Application: BayStar is for single-outboard powered boats rated up to 150 HP, including runabouts and inflatables and outboard engines with ABYC standard engine tilt tubes up to 150 HP (total). For single station, single engine use only. BayStar is not intended for high speed, high performance type boats.
Helm and cylinder equipped with adjustable O-ring fittings to simplify the installation process and allow for simple reorientation of the fittings after installation.

  • Requires 5" H x 6" D x 21" W minimum splashwell

  • 5 Turns from lock-to-lock

  • Balanced cylinder that fits most splashwells and provides full engine movement

  • Compact helm has only a 5" footprint; needs only 3" dash hole (Standard or Tilt)

  • Complete with helm, cylinder, fittings, tubing, oil, fill kit & instructions

  • Standard 3/4" tapered steering shaft

  • Meets A.B.Y.C. standards and meets NMMA certification requirements

  • Two year warranty


Includes:


  • HH43143 - BayStar Helm 1.4 cu with adjustable O-ring fittings

  • HC4645H3 - BayStar Compact Cylinder

  • HA5430 (2) - Hydraulic Oil (1 liter)

CAUTION
BayStar is ONLY applicable for single station steering. DO NOT use BayStar on smaller HP outboard engines that use wing nut type transom mount clamping screws.

Notice
Tilt Helm HH4315 is available separately. Currently not available in kit form.

APPLICATION GUIDE

(Cylinders HC4645H/47H/48H/58H)

MANUFACTURER YEAR MODEL CYLINDER NOTES
FORCE 1985–DATE 90–150 HP HC4645H
HONDA 1992–DATE 30–90 HP HC4645H
1998–2009 115–130 HP HC4647H
2001–DATE 150 HP HC4645H
2003–DATE BF135 HP HC4645H
2010–DATE 115–150 HP HC4645H
JOHNSON / EVINRUDE 1977–1989 65–150 HP HC4648H
1991–DATE 40–150 HP HC4645H
1997–DATE 115 HP FICHT HC4658H See Notes 4, 5
1997–DATE 75–150 HP FICHT HC4645H
1998–DATE 40–140 HP 4-Stroke HC4658H See Notes 1, 4
MERCURY/MARINER 1984–DATE 75–150 HP HC4645H
NISSAN 1990–DATE 120–140 HP HC4645H
SUZUKI 1986–DATE 150 HP HC4645H
1996 ONLY 115–140 HP N/A
1987–2002 115–140 HP HC4645H See Note 1
1990–2000 90–100 HP HC4645H
1998–DATE 40–70 4-Stroke HC4645H See Note 1
2001–DATE 115–140 HP 4-Stroke HC4658H See Notes 1, 4
TOHATSU 1990–DATE 140–140 HP HC4645H
YAMAHA 1998–DATE 40–50 HP HC4645H See Note 2
1998–DATE 60 HP HC4645H See Note 3
1986–DATE 70–90 HP HC4645H See Note 1
1997–DATE 80–150 HP 4-Stroke HC4645H
2000–DATE 25–60 HP 4-Stroke HC4648H See Note 1
2010–DATE 70HP 4-Stroke HC4648H
YANMAR 1990–DATE 27–36 HP HC4645H

Notes
1. Requires Spacer kit part # HO5090
2. Engine clamp brackets must be cut or ground, and the engine through bolted onto the transom, or interference will occur, restricting engine trim and tilt.
3. Steering hook Yamaha Part # 63D-48511-00-4D must be installed
4. Cylinder HC4645 may be used in these applications. The pivot plate will need to be flipped before installation.
Instructions provided with Owner’s Manual.
5. Johnson 115 HP 2-Stroke enginnes, require the pivot plate to be flipped. See Note #4.
