Hydraulic Steering Manifold
Hydraulic Steering Manifolds

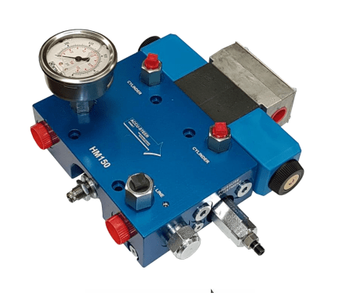

The Accu-Steer HM150 steering manifold is a single speed unit designed to interface hydraulic steering with autopilot and electronic control systems.
The HM150 has an output flow of 0 to 2 GPM with an input flow of 8 GPM and works with systems up to 100 cu.in.
The HM150 receives oil from an engine or electric driven pump, and outputs to steering lines, with the output flow determining the speed of the rudder. The built-in pressure relief valve is factory set at 600 PSI.
Common Features & Options
