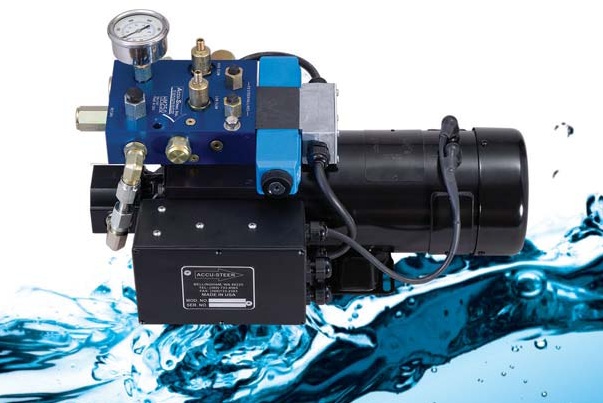

HPU400: Accu-Steer Hydraulic Power Unit
The Accu-Steer HPU400 hydraulic pump
is designed to interface hydraulic steering with electric/autopilot control. Its
compact and rugged construction provides ease of installation along with
long-life operation. These units are available in different voltages and a wide
range of flow rates for both standard and custom requirements.
Load holding valve, two speed adjustable flow control and built in pressure
relief along with anodized manifold are a few features of the HPU series.
HPU400 power unit provides up to 4 GPM of flow and is capable of generating up
to a factory set relief pressure of 750 PSI.
This pump set is suitable for vessels from 30’ to 150’ in length depending on
the vessels steering characteristics.
Common Features & Options
HPU400 Manual (1MB)
