JRC JFE-700 Echo Sounder without transducer

JRC JFE-700 Echo Sounder without transducer




Availability: Contact us for availability

Brand New with Factory Warranty

JRC JFE-700 Echo Sounder without transducer
jfe-700List Price: $US 4,799.00Our Price: $US 4,599.00

Achieves high-accuracy, high-reliability depth measurement performance

  • Meets the IMO Resolution MSC.74(69) Annex 4
  • Other ships interference prevention AUTO function
  • Use a highly visibility color touch panel LCD
  • Memory and read-out up to 48 hours of depth data

Features

Both the JFE-400 and JFE-700 echo sounders continue the tradition of enhanced depth technology with highly accuracy and reliability.

Main Features

  • Other ships interference prevention AUTO function
  • Highly visibility color touch panel LCD
  • 10.4-inch XGA high resolution LCD (JFE-700)
  • 48 hours of depth data memorizing
  • Echoes in 8 colors or 8 levels of monochrome
  • Dual frequency display
  • Separate model (JFE-400)
  • All-in-one model (JFE-700)
  • Optional printer (JFE-400)
  • Built-in printer (JFE-700)
History read-out

History read-out

Meets the IMO Resolution MSC.74(69) Annex 4

The echo sounder is a mandatory equipment for large vessels and the JFE-400/700 meets the IMO Resolution MSC.74(69) Annex 4.

Other ships interference prevention AUTO function

JRC's new echo sounder is equipped with the AUTO function in the other ships interference prevention function.
Optimal interference prevention processing works according to the usage conditions, it is possible prevent misidentification of interference waves emitted from other ships.

Display modes

JRC's new echo sounders incorporates a 6.5-inch and 10.4-inch high visibility color touch panel LCD. The display modes allow you to select and view echoes in 8 colors or 8 levels of monochrome.

Display modes1

The separate model JFE-400 echo sounder incorporates printer adaptability.

*: The table mount kit is optional.

Display modes2

The all-in-one model JFE-700 features a build in printer, providing the ship's log with valuable printouts if required.

Memory and read-out up to 48 hours of depth data

The maximum recording time for depth data has been doubled to 48 hours from the 24 hours of previous models. History mode also enables reading of past recorded depth data.

System

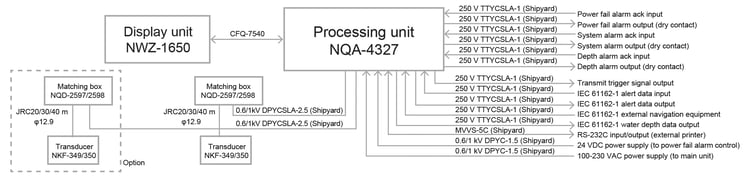

JFE-400

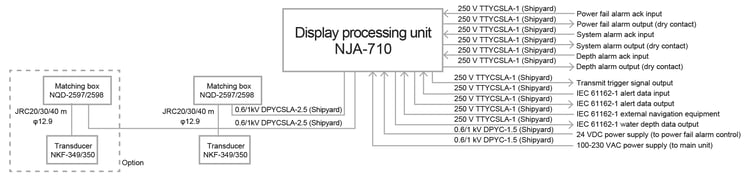

JFE-700

Dimensions

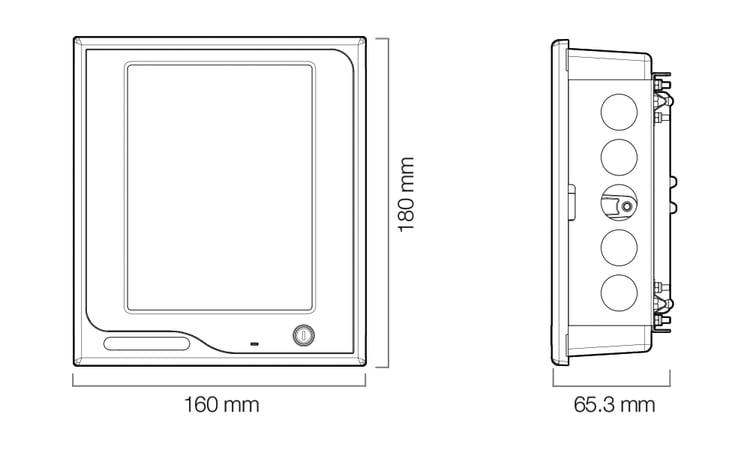

Display Unit NWZ-1650
Mass: Approx. 1.0 kg

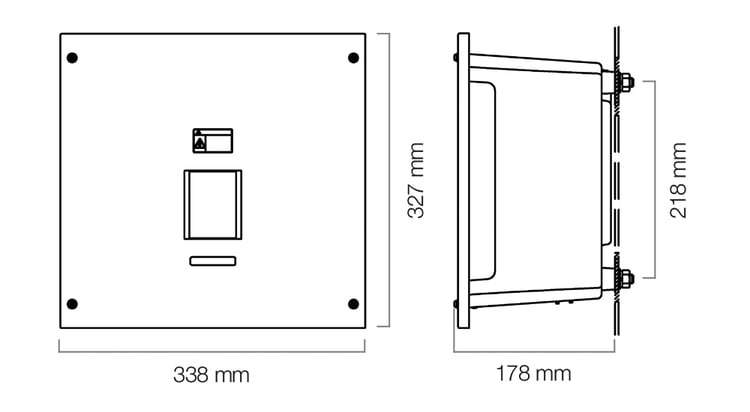

Processor Unit NQA-4327
Mass: Approx. 5.9 kg

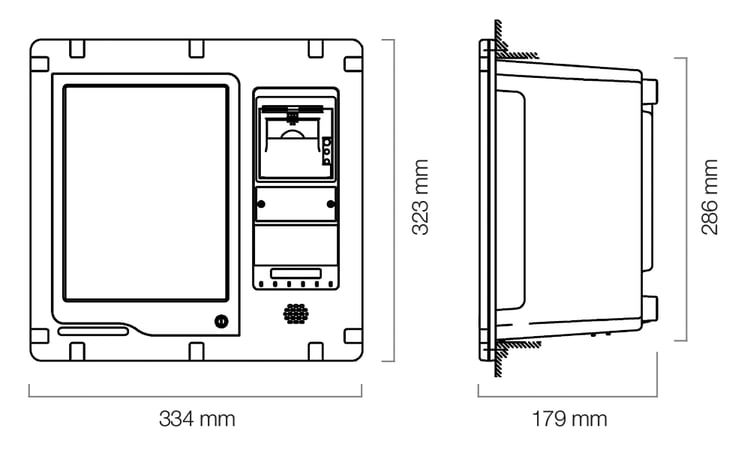

Display Processing Unit NJA-710
Mass: Approx. 7.0 kg

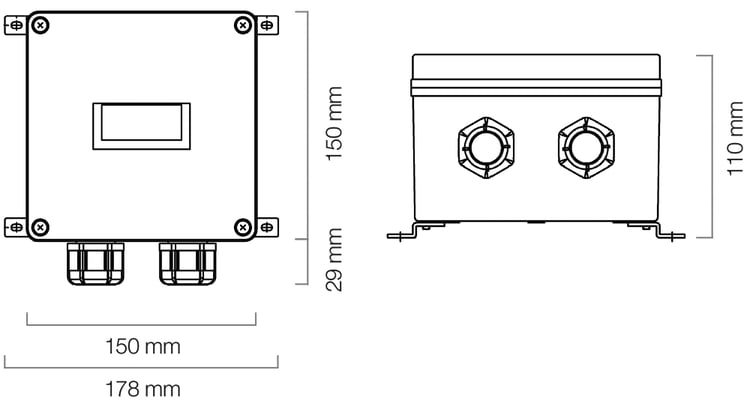

Matching Box NQD-2597/2598
Mass: Approx. 0.87 kg NQD-2597
Mass:Approx. 0.76 kg NQD-2598

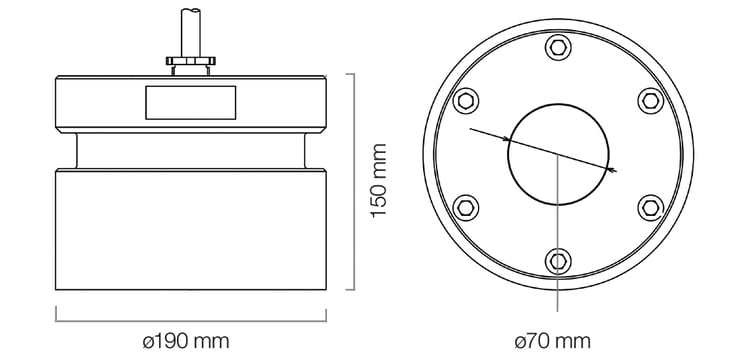

Transducer NKF-349 (200 kHz)
Mass: Approx. 26 kg

*: Exclude Cable

Transducer NKF-350 (50 kHz)
Mass: Approx. 26 kg

*: Exclude Cable

Specifications

General JFE-400 JFE-700
Display 6.5-inch LCD 10.4-inch LCD
Resolution 640x480 (VGA) 1024x768 (XGA)
Frequency 200 kHz/50 kHz
Echo Color 8 colors or 8 level monochrome
Digital Depth 3 digit
Range Scale 5, 10, 20, 50, 100, 200, 500, 800 m
Depth Accuracy 20 m range: ±0.5 m or less
200 m range: ±5 m or less or ±2.5 % of the indicated depth, whichever is greater
Minimum Sounding Depth 200 kHz: 1.0 m
50 kHz: 2.0 m
Draft Adjust 50 m in 0.1 m steps
TX Pulse Repetition Rate 171PRP (5, 10, 20, 50 m)
86PRP (100, 200 m)
43PRP (500, 800 m)
Presentation Mode Standard, history, docking
Time Range of Echo Display 5, 10, 20, 30 min
Auto Function Gain, range, interference waves rejection from other ships at startup
Alarm Function Depth, power fail, system error
Preview Function 3, 6, 12, 24, 48 hours or up to 48 hours
Power Supply 100-115/200-230 VAC±15 %, 50 Hz/60 Hz±5 %
24 VDC (only use for power fail monitoring)
Power Consumption 100 VAC: 140 VA
220 VAC: 200 VA
24 VDC: 0.8 W		 100 VAC: 120 VA
220 VAC: 175 VA
24 VDC: 1.4 W
Operating Temperature -15 to+55 ℃
Relative Humidity 93 %@40 ℃
Waterproofing Display unit: IP56
Processing unit:
floor mount: IP20/wall mount: IP22
Matching box: IP55		 Display processing unit:
flush mount: IP22/wall mount: IP22
Matching box: IP55

Components

Standard components

Name Model Q'ty
JFE-400
Display Unit NWZ-1650 ×1
Processing Unit NQA-4327 ×1
Display-LAN Cable CFQ-7540 ×1
Matching Box (Primary) NQD-2597 ×1
NQD-2598
Transducer (Primay) NKF-349 ×1
NKF-350
Spare Parts 7ZXNA2012 ×1
Instruction Manual 7ZPNA2051 ×1
JFE-700
Display Processing Unit NJA-710 ×1
Matching Box (Primary) NQD-2597 ×1
NQD-2598
Transducer (Primay) NKF-349 ×1
NKF-350
Spare Parts 7ZXNA2009 ×1
Instruction Manual 7ZPNA2081 ×1

Optional

Name Model
JFE-400
Matching Box (Secondary) NQD-2597
NQD-2598
AW-154F
AW-154F-50
Transducer (Secondary) NKF-349
NKF-350
NKF-341
NKF-345
Gate Valve Transducer NKF-394
NKF-396
G-002758
G-002759
G-002760
G-002761
G-002762
G-002763
G-008791
G-008792
Spare Parts 7ZXNA2009
7ZXNA2010
7ZXNA2011
Junction Box JB-340
Output Buffer NQA-4351
Remote Display NWZ-4610
Dimmer Unit NCM-227
AC Power Rectifier NBA-5143
Base Kit MPBX50347
Printer NKG-901
Printer Wall Mount Bracket MPBP32159A
Printer Cable 7ZCJD0254A
7ZCJD0270B
JFE-700
Matching Box (Secondary) NQD-2597
NQD-2598
AW-154F
AW-154F-50
Transducer (Secondary) NKF-349
NKF-350
NKF-341
NKF-345
Gate Valve Transducer NKF-394
NKF-396
G-002758
G-002759
G-002760
G-002761
G-002762
G-002763
G-008791
G-008792
Spare Parts 7ZXNA2010
7ZXNA2011
Junction Box JB-340
Output Buffer NQA-4351
Remote Display NWZ-4610
Dimmer Unit NCM-227
AC Power Rectifier NBA-5143
Conversion Flange for JFE-680 BRBX05692
