JRC GPS Navigator JLR-8400

JRC GPS Navigator JLR-8400




Availability: Usually ships the next business day

Brand New with Factory Warranty

No Flat Promo Shipping Rate Offered for this item. Ship only via Ground Freight Rate

JRC GPS Navigator JLR-8400
jlr-8400

Features

Both JLR-8400 and JLR-8600 are reliable and accurate GPS navigators which carry the same JRC DNA with uniform design and intuitive, trusted operation. Combined with our new multi-GNSS sensor you are ensured of accurate positioning without compromise.

·High reliability ·Flexibility system configuration

·Multi-GNSS sensor ·IMO approved
·Up to 22 satellite signal trackable ·Complete and compact
·Intuitive and trusted operation ·High accuracy
·Easy to install ·Remote maintenance posiible

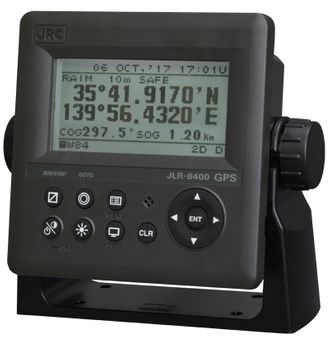

JLR-8400

The compact JLR-8400 GPS navigator is compatible with Multi GNSS and will provide accurate position data even in Arctic area, without SBAS and beacon.

JLR-8600

The new JLR-8600 GPS navigator combined with our trusted 6.5-inch touch display will locate your position with high accuracy utilizing our newly designed antenna, providing you with the comfort of an intuitive operational approach.

JLR-8400 JLR-8600
Units 2 3
Route sharing with LAN n / a ECDIS / Radar / Navigation system
Waypoint 1,000 10,000
Routes 20 ( 50 waypoint / route ) 100 ( 512 waypoint / route )
Alarm log 40 100

Multi-GNSS sensor

The newly designed multi-GNSS sensor is capable of receiving data from GPS as well as GLONASS or BeiDou at the same time, allowing for a highly accurate positioning, without beacon and SBAS.

The sensor can increase the accuracy of your position by receiving correction data SBAS satellites.

  • Combination for multi-GNSS
  • GPS stand alone
  • GPS + SBAS
  • GPS + QZSS
  • GPS + GLONASS
  • GPS + GLONASS+QZSS
  • GPS + BeiDou
  • GPS + BeiDou+QZSS

Easy installation

Both displays are very compact and can virtually be mounted anywhere using the flush mount system. The base of the sensor is designed for an easy installation, either on a pole or on an extension mast. The base also includes a slot allowing for easy cable management. Connecting everything together allows for a high reliability installation approach with redundancy of sensors, power supply and processor units.

System

JLR-8600

JLR-8600

JLR-8400

JLR-8400

Dimensions

GPS sensor unit JLR-4350
Mass : Approx. 1.2 kg

JLR-4350

Display unit NWZ-4620
Mass : Approx. 0.8 kg

NWZ-4620

Processor unit NDC-4100
Mass : Approx. 1.9 kg

NDC-4100

Display unit NWZ-1650
Mass : Approx. 1.5 kg ( Base kits included )

NWZ-1650

Specifications

Equipment name GPS navigator
Model JLR-8600 JLR-8400
Standard IEC 60945 Ed.4.0 ( 2002 )
IEC 61108-1 Ed.2.0 ( 2003 )
IEC 61162-1 Ed.5.0 ( 2016 )
IEC 61162-2 Ed.1.0 ( 1998 )
IEC 61162-450 Ed.1.0 ( 2011 )
IEC 62288 Ed.2.0 ( 2014 )
IEC 60945 Ed.4.0 ( 2002 )
IEC 61108-1 Ed.2.0 ( 2003 )
IEC 61162-1 Ed.5.0 ( 2016 )
IEC 62288 Ed.2.0 ( 2014 )
Sensor
Model JLR-4350
Positioning satellite system GPS, GLONASS, BeiDou, SBAS, QZSS
Accuracy Satellite system Positioning accuracy ( 2DRMS )
GPS + GLONASS + QZSS 4 m
GPS + BeiDou + QZSS
GPS + GLONASS
GPS + BeiDou
GPS + SBAS
GPS 5 m
Maximum number of tracked satellites 22 satellites
Sensitivity -144 dBm for acquisition
Time to first fix Typically 35 seconds( cold start fix )
Typically 33 seconds( warm start fix )
Typically 4 seconds ( hot start fix )
Position update Normally every 1 second
Geodetic satum Selection among 48 geodetic datum( default : WGS-84 )
JLR-8600/8400 specifications
Model Display unit : NWZ-1650
Processor unit : NDC-4100
Display unit : NWZ-4620
Display 6.5 inch TFT color LCD 4.5 Inch monochrome LCD
640×480 dots(VGA)
Brightness : 800 cd/m2
128×64 dots
Backlight 17 steps White or orange
Memory Waypoints : 10,000 points
Event/Mark : 1,000 points
Route : 100 routes
Track : 2,000 points
Waypoints : 1,000 points
Event/MOB : include in waypoints
Route : 20 routes
Track : 2,000 points
Plot function scale 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, 200, 300 NM 0.125, 0.25, 0.5, 1, 2, 5, 10, 20, 50, 100 NM
Plot interval 1 - 60 min ( 1 sec ) or 0.01 - 99.99 NM ( 0.01 NM ) selectable
Navigation calculation Grate circle or rhumb line selectable
Screen mode Navigation information screen, plotting screen, analogue screen, highway screen, satellite information screen, waypoint information screen, beacon text screen, navigation aid screen Navigation screen, PLOT screen, GPS information screen, beacon information screen, CDI screen, distance screen, speed screen, reception information screen, waypoint information screen
Alert Arrival, anchor, boundary, XTD, no position fix, speed, trip, HDOP, temperature, depth Arrival, anchor, XTD, no position fix, speed, trip, HDOP
Unit Distance speed: NM, kn, km, km/h, mi, mi/h
Buffer/select switch Built-in Option
Dual power supply Available None
Power supply voltage DC12 / 24 V : 2.0 A DC12 / 24 V : 0.5 A
Power consumption 25 W ( JLR-4350 ) 7 W ( JLR-4350 )
Interface
Ports
IEC 61162-1 :
  • ( Input )2 ports,( output )5 ports
IEC 61162-2 :
  • ( Input )1 port,( output )1 port
Buffer( IEC 61162-1 ):
  • ( Output )8 ports
LAN( IEC 61162-450 ):
  • 2 ports
Dry contact :
  • ( Input )1 port,( output )4 ports
RS-232C :
  • ( Input )1 port,( output )1 port
IEC 61162-1 :
  • ( Input / output )3 ports
Dry contact :
  • ( Input )1 port,( output )1 port
NMEA0183 version Ver1.5 / 2.1 / 2.3 / 4.0
NMEA0183 input sentence ACK, ACN, ALC, ALF, ALR, CUR, DBT, DPT, HBT, HDT, MTW, MWV, RTE, THS, VBW, VHW, VWR, VWT, WPL ACK, ACN, RTE, WPL
NMEA0183 output sentence AAM, ACK, ACN, ALC, ALF, ALR, APB, BOD, BWC, BWR, CUR, DBT, DPT, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, HDT, MTW, MWV, RMB, RMC, RTE, THS, VBW, VHW, VTG, VWR, VWT, WPL, XTE, ZDA, ZTG ACK, ACN, ALC, ALF, ALR, APB, BOD, BWC, BWR, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, RMB, RMC, RTE, VTG, WPL, XTE, ZDA, ZTG
Environment
Operating temperature GPS sensor : -25 ? to +55 ?
Display unit : -15 ? to +55?
Processor unit : -15 ? to +55?
GPS sensor : -25 ? to +55?
Display unit : -15 ? to +55?
Storage temperature GPS sensor : -40 ? to +70?
Display unit : -25 ? to +70?
Processor unit : -25 ? to +70?
GPS sensor : -40 ? to +70?
Display unit : -25 ? to +70?
Waterproofing GPS sensor : IP56
Display unit : IP56
Processor unit : IP22
GPS sensor : IP56
Display unit : IP55

·GPS sensor Waterproofing: IEC 60945 Ed.4.0 ( 2002 ) conformant

Components

Standard components

Name Model Q'ty
JLR-8600
GPS sensor unit JLR-4350 ×1
Instruction manual ( sensor ) 7ZPNA4695 ×1
Processor unit NDC-4100 ×1
Display unit NWZ-1650 ×1
Display cable CFQ-7540 ×1
Instruction manual 7ZPNA4699 ×1
JLR-8400
GPS sensor unit JLR-4350 ×1
Instruction manual ( sensor ) 7ZPNA4693 ×1
Display unit NWZ-4620 ×1
Data power cable CFQ-5766A ×1
Instruction manual 7ZPNA4697 ×1
