Max Power offers a complete range of 12V/24V electric tunnel thrusters to
suit motor boats and deep footed sailing yachts from 17’ to 85’ feet.
Designed for performance & durability, Max Power electric tunnel thrusters
offer many unique features:
- Corrosion free composite drive legs eliminate the need for periodic anode
changes and offer high manufacturing tolerances
- Drive legs are pre-filled with oil and sealed for life for zero
maintenance
- Case hardened spiro-conical gears guarantee a silent, smooth and durable
drive leg
- Line shields protect oil seals from fishing lines & fouling, ensuring
maintenance free operation
- High efficiency, purpose built DC motors ensure outstanding performance
and long runtime ratings
- Solid copper contact bars guarantee safe, high power connections
- Purpose built high specification DC contactors are both safe and durable
- Electronic control boxes offering unique and unrivaled safety features to
protect against accidental misuse

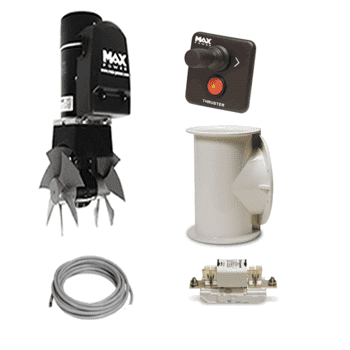

The 12V, twin propeller CT100 suits a wide range of motor boats and deep
footed sailing yachts ranging from 30’-53’.
This
composite thruster has a tunnel diameter of 185mm and a thrust rating up to
90/198 (kg/lbs).
The CT100, like all Max Power electric tunnel thrusters, is maintenance free,
benefits from a long lifespan and integrates all the unique features of this
range
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V
units. Higher voltages will result in higher thrust ratings, higher power
consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of
one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter,
and this within a variation of + / - 6%. Longer tunnels will result in lower
thrust ratings and higher power consumption.
|
Code
|
Voltage
|
Thrust
|
Propellers
|
Power
|
Weight
|
A
|
B
|
C
|
D
|
E
|
|
42534
|
12V
|
96(kg) / 212(lbs)
|
2
|
7.1(kw) / 9.5(hp)
|
24(kg)
|
250(mm)
|
200(mm)
|
365(mm)
|
185(mm)
|
6 - 7(mm)
|
