Max Power CT35 Electric 2.7kw/3.6hp 125mm Tunnel Thruster 12V, 42529
Max Power offers a complete range of 12V/24V electric tunnel thrusters to
suit motor boats and deep footed sailing yachts from 17’ to 85’ feet.
Designed for performance & durability, Max Power electric tunnel thrusters
offer many unique features:
- Corrosion free composite drive legs eliminate the need for periodic anode
changes and offer high manufacturing tolerances
- Drive legs are pre-filled with oil and sealed for life for zero
maintenance
- Case hardened spiro-conical gears guarantee a silent, smooth and durable
drive leg
- Line shields protect oil seals from fishing lines & fouling, ensuring
maintenance free operation
- High efficiency, purpose built DC motors ensure outstanding performance
and long runtime ratings
- Solid copper contact bars guarantee safe, high power connections
- Purpose built high specification DC contactors are both safe and durable
- Electronic control boxes offering unique and unrivaled safety features to
protect against accidental misuse
Manufactured using composite materials, the CT35 is a single propeller
thruster with a 125mm diameter tunnel and thrust rating up to 35/75 (kg/lbs).
The smallest in the Max Power electric tunnel thruster range, the CT35 is
ideally suited to motor boats and deep footed sailing yachts that are between
17’-34'.
Like all Max Power electric tunnel
thrusters, the CT35 is easy to install, maintenance free, and integrates all the
unique features common to this range.
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V
units. Higher voltages will result in higher thrust ratings, higher power
consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of
one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter,
and this within a variation of + / - 6%. Longer tunnels will result in lower
thrust ratings and higher power consumption.

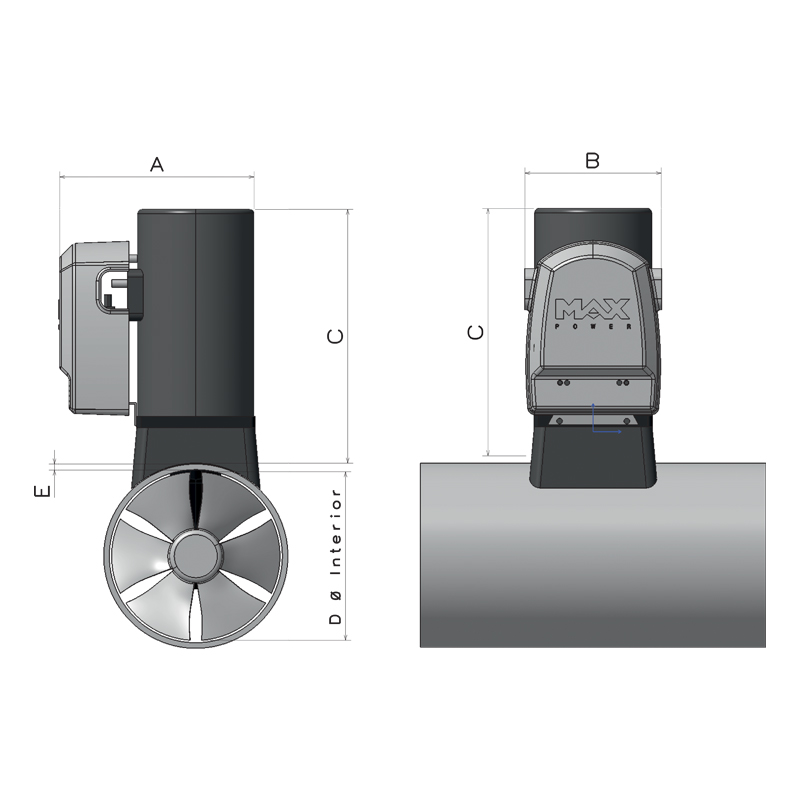

| Code |
Voltage |
Thrust |
Propellers |
Power |
Weight |
A |
B |
C |
D |
E |
| 42529 |
12V |
35(kg) / 77(lbs) |
1 |
2.69(kw) / 3.6(hp) |
9.6(kg) |
190(mm) |
140(mm) |
210(mm) |
125(mm) |
4 - 5(mm) |
|
|
|
|
