Furuno SCX20 Compact Dome Satellite Compass (1.0 Heading Accuracy), NMEA2000 Certified

Furuno SCX20 Compact Dome Satellite Compass (1.0 Heading Accuracy), NMEA2000 Certified




Availability: Usually ships the next business day

Brand New with Factory Warranty

Furuno SCX20 Compact Dome Satellite Compass (1.0 Heading Accuracy), NMEA2000 Certified
scx20List Price: $US 1,600.00Our Price: $US 1,395.00
Compact Dome Satellite Compass™ (1.0 Heading Accuracy), NMEA2000® Certified

Data TypeNMEA2000

Display TypeSupplied Separately

Power Usage12-24 VDC

Receiver TypeGPS or GLONASS or Galileo or QZSS or SBAS

Features

  • Quad-antenna design for extreme accuracy

    Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX-20 set a new standard for reliable and accurate heading for all of your marine electronics. Traditionally, a Satellite Compass™ calculates heading using one baseline between two antennas; the SCX-20 four antennas can calculate heading information using any one of the six baselines drawn between the four antennas. The unprecedented quad-antenna design of the SCX-20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.
  • Superior accuracy for all your sensors

    The SCX-20 enhances the performance of on-board equipment such as Radar, Fish Finders, Sonar, and Autopilots. Accurate heading information empowers your NAVpilot to keep a better course, saving time, fuel, and money on every voyage; meanwhile, precise pitch, roll, and heave information stabilizes the display for many Furuno Fish Finders and Sonars, allowing for an accurate presentation even in the roughest of seas.

    Radar Plotter
    True echo trails are available when the SCX-20 is connected to your Furuno Radar, helping to determine own ship’s movement as well as the movement of other vessels. Accurate speed and heading data ensures that target trails are displayed smoothly and accurately, without the jagged, zig-zag appearance common to compasses with a higher degree of deviation.

    TRUE MOTION TARGET TRAILS


    Fish Finder
    Even in heavy seas, accurate heave compensation from SCX-20 enables Fish Finders such as the FCV-1150 or NavNet TZtouch/TZtouch2/TZtouch3 to show you an unwavering presentation of the seabed, without the undulations caused by sea conditions.

    HEAVING COMPENSATION

    Sonar
    Accurate pitch and roll information allows Furuno Sonar systems to display a steady image on the screen, even in foul weather.

    PITCH & ROLL COMPENSATION
  • Radar Echo Trail ZIG-ZAG Domination

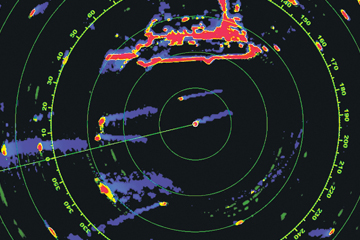

    FURUNO SCX-20/21
    When connected to Furuno SCX-20/21, the Radar’s echo trails hold steady and clearly depict an accurate echo trail thanks to the SCX-20/21’s amazing accuracy.

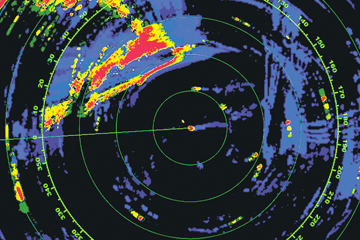

    Company A
    Company A’s satellite compass fails to uphold a steady heading, making echo trails virtually unintelligible.


    Company B
    Company B’s heading accuracy fluctuates by +/- 3˚ with a slower update, causing an echo trail that has a wide zig-zag pattern.


    Company C
    Company C’s heading accuracy fluctuates by +/- 5˚ with a faster update, causing an echo trail that is indistinguishable and confusing.

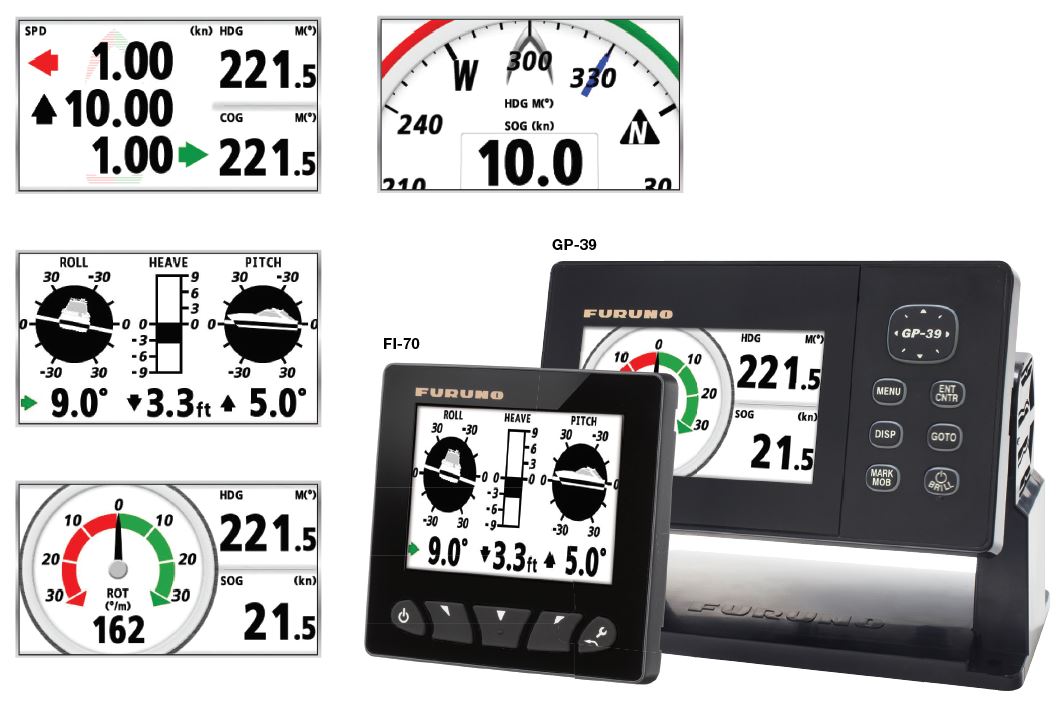

  • Relay Critical Data

    Effortlessly connect with existing Furuno systems in order to elevate your awareness of own vessel and the surrounding area by displaying critical information across several products including NavNet TZtouch MFD’s, NAVpilot-300, FI-70, and GP-39! Initial setup can be done from NavNet series MFD, NAVpilot-300 and GP-39.

    3-Axis Speed
    Pitch, Roll, Heave
    Rate of Turn (RoT)
    Heading (HDG)


  • Perfect for NavNet TZtouch MFD, NAVpilot-300, and WASSP installations

  • Outputs accurate Time, Position, Heading, COG/SOG, ROT, Roll/Pitch/Heave 3-Axis Speed, Air Temperature and Air Pressure data

  • Unprecedented heading accuracy for Radars, Sonars, and Navigation

  • Utilizes four Multi GNSS (GPS, QZSS, GLONASS, Galileo) antennas

  • 1.0 degree heading accuracy, 0.02 knot speed accuracy

  • Lightweight antenna - only 1.0kg!

  • A comparison that says it all


    Test Conditions:
    Roll - Amplitude 20°, 10 sec. period
    Pitch - Amplitude 10°, 6 sec. period
    Heading - 5°, 15 sec. period
    Standard - ISO22090-3 (2015)

Specifications

GENERAL

Frequency
1575.42 MHz (GPS/Galileo/QZSS/SBAS)
1602.5625 MHz (GLONASS)
Tracking code
C/A (GPS/QZSS/SBAS), E1B (Galileo), L1OF (GLONASS)
Heading Accuracy
Heading/Roll/Pitch: 1.0° rms (static) 0.5° rms (dynamic)
Follow-up
45°/sec
Settling time
60 seconds approx.
Position Accuracy
GPS: 5m approx. (2 drms, HDOP < 4)
MSAS: 4m approx. (2 drms, HDOP < 4)
WAAS: 3m approx. (2 drms, HDOP < 4)
Interface
1 Port NMEA2000
Input: 059392/904, 060160/416/928, 061184, 065240, 126208/720, 130847
Output: 059392/904, 060928, 061184, 065280,126208/464/720/992/993/ 996/998, 127250/251/252/257/258, 129025/026/029/538/539/ 540,130310/312/314/316/577/578/816/817/818/819/822/823, 130833/834/842/843/845/846/847
Temperature
25°C to +55°C (storage: -30°C to 70°C)
Waterproofing
IP56
Power Supply
12-24 VDC: 0.2-0.1 A (4 LEN @ 9 VDC)

Equipment List

Standard

  • Cable AssemblySCX-20: FRU-NMEA-PMMFF cable (6m)
    SCX-21: FRU-CF-F cable (15m)
    SCX-20: Roof or Pole Mount
  • SCX-21: Pole Mount ONLY

Option

  • Installation materials, spare parts
  • Interface Unit:SCX-20: FI-70
    SCX-21: GP-39

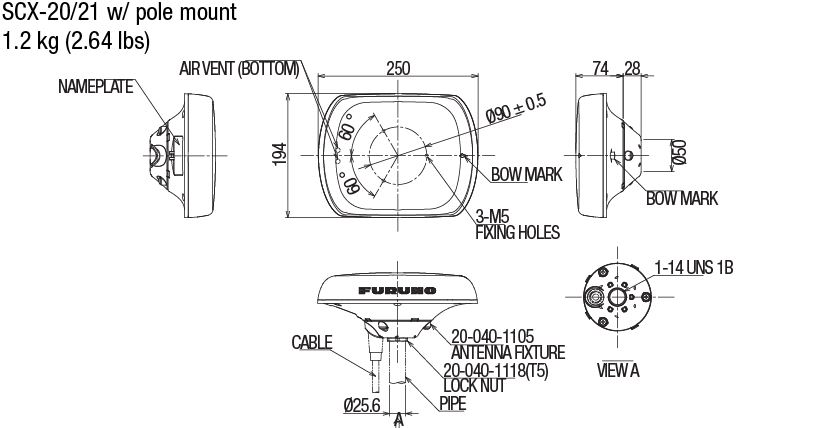

Drawing

Interconnection Diagram


牋牋
