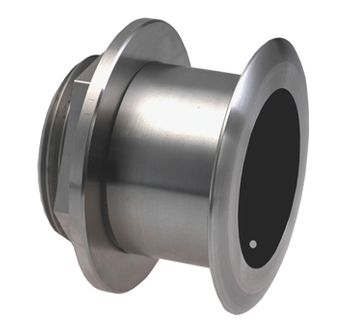

Step up to a 1 kW—without a fairing! This 1
kW, flush-mount transducer is perfect for fast, trailered, tournament and
sport-fishing vessels that cannot accommodate a High-performance Fairing. The
flush-mounted, stainless steel housing extends less than 6.35 mm (1/4") outside
your hull, so it can sit on trailer rollers and bunks. The ceramic arrays are
tilted inside the housing, providing the perfect vertical beam with maximum
energy on what is directly below the boat.
Available in three Tilted Element models:
- Fixed
20° tilted version for 16 to 24° hull deadrise angles
- Fixed
12° tilted version for 8 to 15° hull deadrise angles
- Fixed
0° tilted version for 0 to 7° hull deadrise angles
-
Depth and fast-response water-temperature sensing
-
1 kW of power
-
Dual-frequency elements:
-
50 kHz with a wide 22° beamwidth for depth performance to 529 m (1800')
-
200 kHz with a 6° beamwidth for depth performance to 235 m (800')
-
Interfaces to any 600 W or 1 kW echo sounder
-
Engineered for center-console and trailered boats
-
Low-profile design extends less than 6.35 mm (1/4") below the hull
-
No effect on boat’s running performance
-
Stainless steel housing for use in all hull materials
-
Available in a bronze housing (B164) for use in a fiberglass or wood hull
-
Patented Xducer ID® technology
Specification:
Brand: Airmar
Technology
Acoustic Window: Urethane
Cable-Length: 10
m (33')
Common Use: Fishing
Conventional Beam: 22°x20°/6°
Country of Origin: USA
Frequency Band: 50/200
kHz
Functions: Depth,
Temperature
Hull Material: Compatible
w/ all hull materials
Material: Stainless
Steel
Max Depth: 500
m (1640')
Max Vessel LOA: Up
to 11 m (36')
Mounting Style: Tilted
Element Thru-Hull
Power Rating: 1
kW
Retractable housing: No
Sensor Connector: MM1
Single or Dual Frequency: Conventional
Dual Frequency
Tilted Element: Yes
Weight: 2.7
kg (6 lb.)
