Detailed Description
Legendary, B260, 1 kW performance is now available for fast, sportfishing boats.
No fairing required! Airmar has taken the proven B260 and split it apart into a
pair of low-profile transducers. And the ceramic element in each unit has been
tilted to offset the deadrise angle of your boat’s hull.

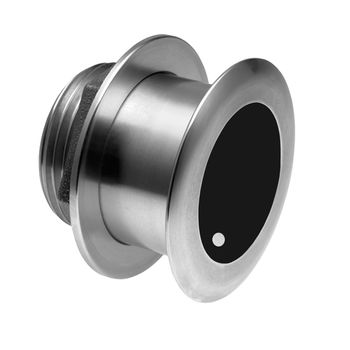

Called the SS264N these transducers are perfect for fast, center-console and
tailored, sportfishing boats, or any vessel that cannot have a thru-hull with a
High-Performance Fairing. The narrow-beam, broadband, 200 kHz transducer will
give you excellent resolution and crisp image detail needed for bottom fishing.
The low ringing of this transducer is perfect for finding fish holding tight to
the bottom and other structure. The seven-element, 50 kHz transducer is the same
found in the SS264W and is best for deep-water sounding down to 914 m (3,000’).
Manufacturer Part Numbers
200kHz Narrow 12° Tilt
Furuno—SS264N-200/12—Airmar-41-359-1-01
200kHz Narrow 20° Tilt
Furuno—SS264N-200/20—Airmar-41-348-1-01
50kHz Wide 12° Tilt
Furuno—SS264W-50/12—Airmar-41-360-1-01
50kHz Wide 20° Tilt
Furuno—SS264W-50/20—Airmar-41-349-1-01
Read the product brochure
Features
- Depth & Temperature
- Consists of two transducers (purchased
separately):
SS264 50 kHz wide-beam 25°
SS264 200 kHz narrow-beam 6°
- 1 kW RMS
- High-Performance
- 0°, 12°, or 20° Tilt
- Low-profile protrusion below the hull
- No affect on your boats running
performance
- Depth and fast-response water-temperature
sensor
- Boat Size: 8 m to 11 m (25’ to 35’)
- Steel Transducer Housing
-
- Exclusive Xducer
ID® technology
Specifications
- Weight: 2.7 kg (6 lb)
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
Technical Data
View Technical Data Page
Transducer Designation:
50AWLQ / 200BH
Owner's Guide
17-458-01.pdf
17-458-01-spanish.pdf
Dimensional Drawing
