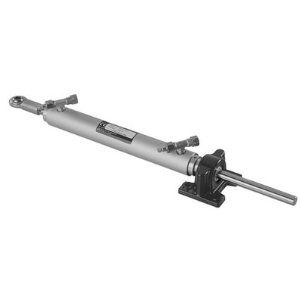

Teleflex Cylinder BA200-7TMC Clevis End Type 18.9 in3, HC5357

Teleflex Cylinder BA200-7TMC Clevis End Type 18.9 in3, HC5357




Availability: Usually ships the next business day

Brand New with Factory Warranty

Teleflex Cylinder BA200-7TMC Clevis End Type 18.9 in3, HC5357
tel-hc5357List Price: $US 1,108.00Our Price: $US 899.00

INTRODUCTION
Capilano Helms and Cylinders are engineered and manufactured for heavy duty marine usage, and are suitable for commercial, work boat and pleasure boat applications. Capilano Hydraulic Steering has been designed to meet ABS, Lloyds and DNV specifications.

For all Pleasure and Work Boat applications 38ft. (11.5m) and smaller with some exceptions, please refer to our SeaStar range of Inboard Steering Systems.

Features
Regular duty aluminum cylinders.
Heavy duty cylinders.
Easy installation for single and dual rudder vessels.
Cylinders supplied with bleeder fittings.
Two axis articulation.
Easy autopilot interface.

GUIDE

MAXIMUM OUTPUT TORQUE APPROX. VESSEL SIZE (HULL LENGTH UP TO) HELM PUMP MODEL STEERING WHEEL TURNS CYLINDER MODEL REQUIRED
LB.IN. (Kg M) Planing Displacement   Min. Max. Fixed
6,548 (75) 35′ (11m) 30′ (9m) 1250v 3.0 6 n/a BA 150-7TM
8,795 (100) 40′ (12m) 38′ (11.5m) 1250V 4.0 8 n/a BA 175-7TM
12,134 (140) 50′ (15m) 45′ (14m) 1250v 5.5 11 n/a BA 200-7TM
12,134 (140) 50′ (15m) 45′ (14m) 1275V 3.5 7 n/a BA 200-7TM
14,766 (170) 50′ (15m) 45′ (14m) 1275V 4.0 8 n/a 2 x BA 150-7TM
19,900 (230) 55′ (17m) 50′ (15m) 1275V 5.5 11 n/a BA 200-11TM
19,902 (230) 55′ (17m) 50′ (15m) 1275V 5.5 11 n/a 2 x BA 175-7TM
26,322 (300) 60′ (18m) 55′ (17m) 1275V 7.5 15 n/a 2 x BA 200-7TM
28,890 (332) -a- -a- -a- -a- 1350 n/a n/a 5.5 BA 175-11TM
39,162 (450) -a- -a- -a- -a- 1350 n/a n/a 7.5 BA 200-11TM

a) Consult Manufacturer for hull lengths.

back to top.

CYLINDER INSTALLATION
Proper cylinder installation is the key to the successful operation of the hydraulic steering system. An incorrectly installed cylinder is subject to rapid seal and bearing wear and non-repairable damage.

An imaginary line drawn through the tiller arm hole at both hard over positions will create the cylinder centre line. With tiller arm at hard over positions, angle X and Y should be the same. Select the diagram and dimensional data that corresponds with your cylinder model.

Notice
Not all possible cylinder mounting configurations are shown, however, all necessary dimensions are shown regardless of mounting configurations.

back to top.

CAPILANO HELM PUMPS
1250V, 1275V & 1350

A unique variable displacement feature on the 1250V and 1275V helms allows the helms-person to adjust the amount of steering wheel turns to their preference within a predetermined range. The 1350 helm is a fixed displacement pump.

1250V & 1275V Helm Pumps

1350 Helm Pump

back to top.

TUBING, HOSES and FITTING KITS
The use of seamless soft annealed refrigeration copper tubing, type L is recommended. If flexible hose is required, use hose that has a minimum operating pressure of 1000PSI, a burst pressure of 5000PSI and the lowest available expansion factor. The 1250V requires the use of 1/2″ OD copper tube while the 1275V requires the use of 5/8″ OD copper tube. The 1350 Helm Pump requires the use of 3/4″ OD copper tube.

Cylinder Hoses
Steering systems installed with copper tubing require short pieces of flexible hose to accommodate slight cylinder movement. Hoses are supplied with 1/2″ swivel flare nuts on each end. Hoses are sold as a pair for single cylinder applications and separately for the variables of twin cylinder installations.

PART NO. DESCRIPTION
The following hoses are for single cylinder applications.
Cylinder Hose Kit, inc. two hoses 18″ (0.45m) long HA5731
The following hoses are for twin cylinder applications, select four hoses as required.
Cylinder Hose, (one) 2′ (0.6m) long, 1250V & 1275V HA5732
Cylinder Hose, (one) 3′ (0.9m) long, 1250V & 1275V HA5733
Cylinder Hose, (one) 4′ (1.2m) long, 1250V & 1275V HA5734
Cylinder Hose, (one) 5′ (1.5m) long, 1250V & 1275V HA5735
Cylinder Hose, (one) 6′ (1.8m) long, 1250V & 1275V HA5736
Cylinder Hose & Manifold, (Four) 2′ (0.6m) long, 1350V HA0733
Cylinder Hose & Manifold, (Two) 28″ (0.8m) and (Two) 37″ (1.07m) long, 1350V HA0734

Fitting Kits

Single steering station and additional steering station S.A.E. flare tube fitting kits are available for use with 1/2″ O.D. and 5/8″ O.D. copper tubing.

DESCRIPTION PART NO.
Fitting Kit, single station, 1/2″ copper tube HF5590
Fitting Kit, additional station, 1/2″ copper tube HF5591
Fitting Kit, single station, 5/8″ copper tube HF5592
Fitting Kit, additional station, 5/8″ copper tube HF5593

Fill and Vent Plug Kit
This kit will facilitate filling and purging of the steering system at a more convenient and accessible area than the helm pump. A through dash fitting, complete with a waterproof vent plug, 18″ (0.45m) long vinyl tube and elbow fittings are supplied with this kit

PART NO. DESCRIPTION
HA5450 Fill and Vent Plug Kit

back to top.

TECHNICAL INFORMATION

HELM PUMP 1250v 1275v 1350
Displacement 1.7cu.in. 3.4 cu.in. (27.8 cc 55.7cc) 2.7cu.in. 5.4 cu.in. (44.2 cc 88.4cc) 8 cu.in. (131 cc)
Relief Valve 1000 PSI (70 Bar) 1000 PSI (70 Bar) 1000 PSI (70 Bar)
Ports 3/8″ NPT 3/8″ NPT 1/2″ NPT



STEERING WHEEL SIZE 1250v 1275v 1350
Minimum Diameter 20″ (500mm) 26″ (660mm) 30″ (760mm)
Maximum Diameter 36″ (941mm) 36″ (941mm) 48″ (1220mm)



HELM PUMP SHAFT 1250v / 1275v 1350
  3/4″ Standard Taper 1″ per ft. 5/8″ NF threads 3/16″ Key 1-1/4″ (317mm) dia. Straight 3/16″ Key



CYLINDER MODEL SPECIFICATION
CYLINDER MODEL STROKE VOLUME TORQUE @ 1000psi 70 bar @ 35 Degrees
BA 150-7 models 7″178 mm 10.2 cu.in. (167cc) 7117 in/lbs (81 Kg)
BA 175-7 models 7″178 mm 13.7 cu.in. (225cc) 9569 in/lbs (110 Kg)
BA 200-7 models 7″178 mm 18.9 cu.in. (310cc) 13200 in/lbs (151 Kg)
BA 200-11 models 11″279 mm 29.7 cu.in. (486cc) 19900 in/lbs (228 Kg)
2x 150-7 models 7″178 mm 23.0 cu.in. (377cc) 15800 in/lbs (181 Kg)
2x 175-7 models 7″178 mm 31.0 cu.in. (508cc) 21400 in/lbs (245 Kg)
2x 200-7 models 7″178 mm 41.0 cu.in. (672cc) 28700 in/lbs (329 Kg)
