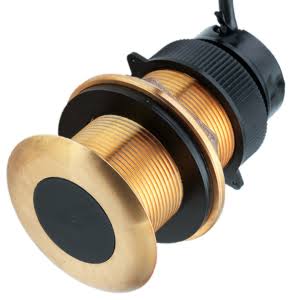

AIRMAR’s new TriSonic Smart Sensor combines a depth sensor, ultrasonic speed
sensor, water temperature and heel and trim data into one sensor. It delivers
unmatched reliability and accuracy without the need for paddlewheel maintenance.
Its ultrasonic speed solution features no moving parts, eliminating cleaning or
wear concerns, making it a high-precision, low-maintenance option for power and
sailboats of all sizes. The TriSonic Smart Sensor, along with the CAST™ app,
simplifies the calibration of speed-through-water. The Airmar CAST™ App connects
directly from iOS and Android™ Smart devices to Airmar’s Bluetooth® enabled
TriSonic Smart™ sensors and makes configuration simple with intuitive menus and
guided calibration. View data from the sensor in digital or graphical format,
quickly turn on or off NMEA 2000® PGNs,
configure offsets and more.
CAST App for Speed and Depth Calibration:
The CAST app provides a simple and consistent way of calibrating speed and
depth. Simple offsets can be applied to compensate for the depth below keel or
depth from surface. Calibrations and configuration changes are stored in the
Airmar Smart Multisensor and delivered to the NMEA2000® network. CAST provides a
consistent and reliable way to calibrate basic and heel-compensated
speed-through-water with a step-by-step guided process. For advanced
speed-through-water calibration, CAST allows you to manually enter custom speed
data for up to four heel angles and up to ten speeds. Prior to CAST, this
feature was only available on the market through expensive PC software.
Embrace Ultrasonic Smart technology and leave paddlewheel maintenance behind,
brought to you by the innovators of the Smart™ Sensor.
Fits: Airmar DT800, DST820, UST850, UDST820 and Smart Sensors. 2-12 Thread.
-
TriSonic Smart Sensor combines:
-
Ultrasonic speed (no paddlewheel)
-
Depth
-
Water temperature
-
Heel and trim data
-
No paddlewheel or moving parts to maintain or replace.
-
Provides NMEA 2000® output
of calibrated data to every instrument and MFD on the network.
-
Advanced speed filtering and sampling rates for enhanced accuracy at all
speeds, with data updating up to 5 times per second.
-
Patented Adaptive Signal Processing – adjusts to boat speed, water depth, and
water clarity for consistent speed accuracy.
-
Suitable for both saltwater and freshwater use.
-
Easily retrofits into most existing AIRMAR 2" housings.
-
Connects wirelessly to Airmar’s CAST app, offering user-friendly benefits:
-
Simplifies speed calibration through your mobile device.
-
Offers basic and advanced speed calibration with the ability to manually
enter speeds for multiple heel angles and up to 10 different speeds, a
feature previously available only through costly PC software.
Brand: Airmar
Technology
Depth Range: Minimum
Depth .6 m ( 2'), Maximum Depth 100 m (328')
Display Connector: N2
Micro
Power Rating: 100
W
Power Supply Current: 80
mA - 200 mA, Average 125 mA @12VDC
Retract Method: Manual
Wireless Range: Up
to 30' depending on mount location
Functions: Depth,
Speed, Temperature, Attitude
Material: Bronze
Mounting Style: Low
Profile Thru-Hull
Hull Material: Fiberglass
or metal
Usable Shaft Length: 57
mm (2.25")
Hole Size: 51
mm (2")
Comm Method: NMEA
2000®
NMEA 2000 LEN: 6
Bluetooth Capable: YES
Bluetooth BLE
Frequency Band: 235
kHz
Voltage: 9
to 16 VDC
Housing: Plastic
Common Use: Cruising/Racing
Sailboats, Leisure/Yachting
Country of Origin: USA
Temperature Accuracy: +0.5°C
(+1.0°F)
Cable-Length: 6
m (20') NMEA 2000® Cable
Data Rate: Up
to 10 times per second
Speed Range: 0.1
to 35 knots (40 MPH)
Tilted Element: No
Weight: 1.4
kg (3 lb.)
Max Depth: 0.6
m (2') to 100 m (330')
Retractable housing: Yes
Retrofits: Fits
most Airmar 2" housings
Water Temperature: -4°
to 40°C (24.8° to 104°F)
Acoustic Window: Epoxy/urethane
