Digital Yacht ONEFIX GNSS System
Model: ZDIGONEFIX
- Hi precision GNSS system
with accuracies typically better than 1m
- Utilises GPS, Galileo,
Beidou and NavIC constellations — with optional Glonass sensor
- L1/L5 dual band receiver and
antenna
- Advanced anti spoofing
algorithm continuously monitors each constellation and generates alerts if
issues detected
- NMEA 0183 and NMEA 2000
outputs
- WiFi interface for iPad and
tablet navigation
- Web interface for setup and
satellite analytics
- Integrated data logger with
export of points by GPX/KML
- NMEA 2000 wind, depth,
speed, AIS and compass data multiplexed to wireless output for use with apps
- Optional MOB switch input to
generate synthetic AIS MOB SART messages on NMEA 2000
- Alarms for errors via NMEA
2000 alerts
- Buzzer/relay output for
external alarms
- 1PPS timing output
OneFix is Digital Yacht’s newly introduced hi-performance GNSS (global
navigation satellite system) sensor. Using multiple satellite networks and new
dual band technology, it’s been designed to offer super-accurate positioning
(typically better than 1m) and importantly has robust anti-spoofing algorithms
built in for more reliable navigation. It can also fit to just about any
navigation system (including legacy units) plus connect to iPads and tablets and
the latest multi-function NMEA 2000 compatible displays. OneFix promises to
bring highly accurate, more reliable navigation to any boater.
OneFix incorporates a dual band (L1 and L5) processor and works with GPS,
Galileo, NavIC and Beidou to calculate a fix. Glonass (the Russian based system)
is available as an option with a 2nd active antenna making for a very advanced
system.
OneFix has also been designed to connect to older systems via legacy NMEA 0183
as well as more modern systems with NMEA 2000.
OneFix built-in web interface also incorporates data logging and event marking
capabilities so key points of a voyage (or even fishing hotspots) can be logged
to internal memory. You can download event markers and track log files in GPX
and KML formats for easy overlay on Google Maps and charts.
OneFix can generate industry-standard alerts on the NMEA 2000 bus, enabling
"pop-up" notifications on compatible MFDs. When paired with the NavAlarm
sounder, it provides an ultra-loud audible alarm to ensure critical warnings are
never missed. OneFix generates alerts for position inaccuracy, positioning
spoofing or errors, offering enhanced safety and reliability on the water.
OneFix also supports a simple switch input for an MOB, such as Digital Yacht’s
MOB input panel, and will generate a synthetic AIS MOB message on the NMEA 2000
network. By pressing the button on the Digital Yacht MOB panel, OneFix will
generate NMEA 2000 MOB (man overboard) alerts.
OneFix also has an input for alternative positioning systems such as STL from
Iridium. These use triangulation from substitute satellite networks to provide
an alternative albeit less accurate position fix (approx. 50m) but have the
advantage of a more powerful signal and alternative frequency outside of
traditional GNSS constellations.
OneFix can accept data from these systems via NMEA 0183 and switch between
networks allowing for a flexible multi-input, hub-based solution.
Accessing OneFix web interface is very simple. Simply use any phone, PC, Mac or
tablet to logon to the built-in web interface and no internet connection is
required.
Specifications
| Weight |
600 g |
| Dimensions |
160 103 50
mm |
What's in the Box:

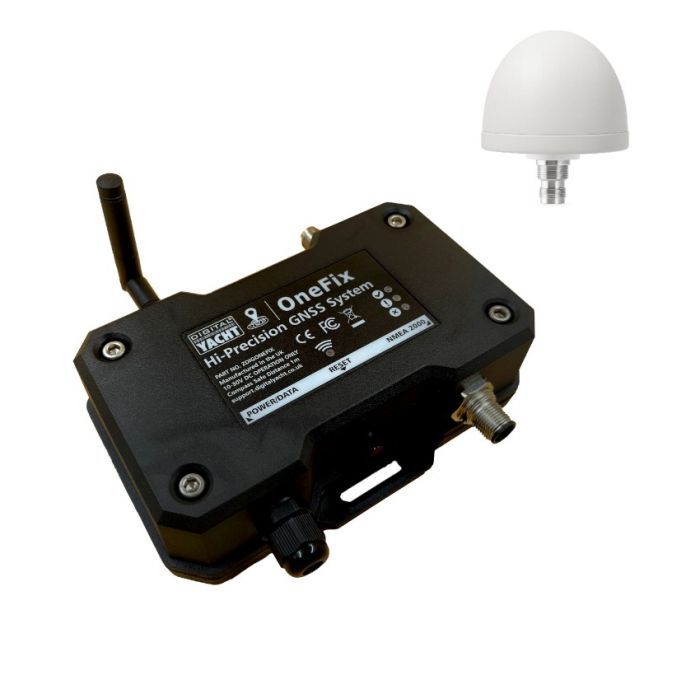

- OneFix Interface
- External GPS and 10m cable
