Xantrex Truecharge3 20 Amp 3 Bank 24v Charger, 110/230V Input

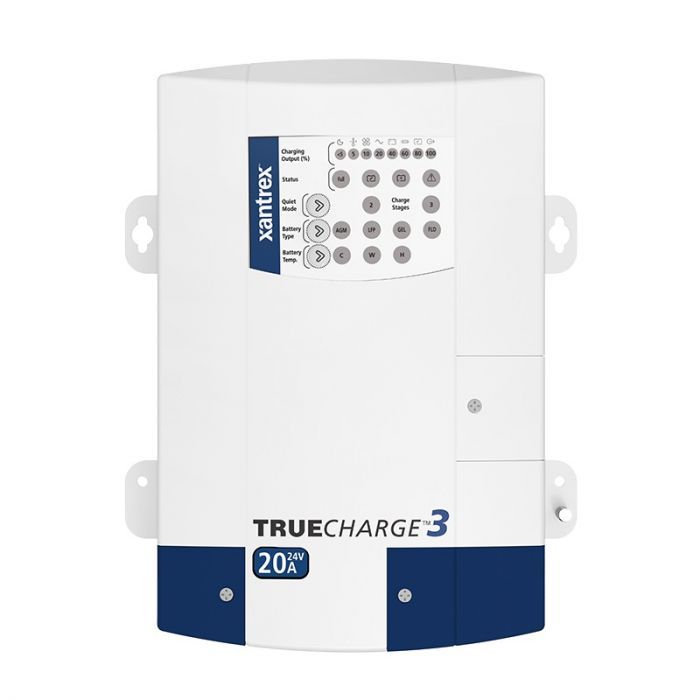

Xantrex Truecharge3 20 Amp 3 Bank 24v Charger
Model: 804-2420-10
- Lithium-ion battery
compatible
- Automatic 3-stage battery
charger
- Parallel stack up to 2
chargers
- Circuit breaker protection
TRUEcharge3 battery chargers lead the industry with a small footprint and
ultra-compact design. In addition to meeting global safety and regulatory
standards, they feature low electrical interference and efficient, power factor
corrected multistage charging. Thanks to their inherent drip-proof design
characteristics, these chargers can be mounted in multiple positions. Unlike
its predecessors, TRUEcharge3 is Lithium-ion battery compatible.
Designed for recreational and commercial applications worldwide, TRUEcharge3
accepts 90265 Vac, 4763 Hz which makes traveling abroad and handling
poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V
models can be augmented with an optional remote panel. Each models comes with
built-in protection against surges and spikes on the AC power line
Specifications
| Output
current (nominal) |
20 A |
| Charge |
28.4 31.0
Vdc |
| Float |
26.8 27.6
Vdc |
| Equalize |
32 Vdc |
| DC output
connections |
Three |
| AC input
voltage |
90-265; Vac
47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal |
| Temperature
compensation |
Three
settings |
| Charger
efficiency |
Greater
Than 80 percent |
| Battery
type |
Gel,
Flooded, AGM, Lithium-Ion |
| Minimum
recommended battery bank size |
40 Ah |
| Operating
temperature |
060
degrees C (32140 degrees F) |
| Storage
temperature |
-408
degrees C (-40176 degrees F) |
| Weight |
4.8 lb (2.2
kg) |
| Warranty |
Two year |
| Dimensions |
2.8 x 6.7 x
9.8in (70 x 170 x 250 mm) |
|
