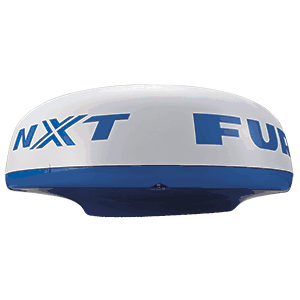

Furuno DRS4DNXT 36nm 24" Solid-State Doppler Radar (No cable included)

Furuno DRS4DNXT 36nm 24" Solid-State Doppler Radar (No cable included)




Availability: Usually ships the next business day

Brand New with Factory Warranty

Furuno DRS4DNXT 36nm 24" Solid-State Doppler Radar (No cable included)
c60563List Price: $US 2,920.00Our Price: $US 2,695.00

DRS4D-NXT, Radar Redefined

A Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO's exclusive RezBoost™ technology, the DRS4D-NXT packs the performance of an open array radar, in a compact 24” radome.

Features

NEWTarget Analyzer™ function utilizing Doppler technology spots hazardous targets instantly!

Doppler Target Analyzer

The DRS4D-NXT is the first radar in the world to use the new FURUNO exclusive Target Analyzer™ function. Targets that are approaching your vessel automatically change color to help you identify when they are hazardous. Green echoes are targets that stay stationary, or are moving away from you, while red echoes are hazardous targets that are moving towards your vessel.
Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ improves situational awareness and can increase safety by showing you which targets to look out for.

  • Target Analyzer™ ON

  • Target Analyzer™ OFF

Two approaching targets are depicted clearly in RED when Target Analyzer™ is ON. When Target Analyzer™ is OFF, it is difficult to identify which targets are approaching.

  • Hazardous targets are displayed in bright red
  • See moving targets close to structures clearly with Target Analyzer™

NEWRezBoost™ beam sharpening

RezBoost™

For the first time, FURUNO's exclusive RezBoost™ technology has been incorporated into one of our Radar units, with impressive performance. When RezBoost™ is set to MAX, the sharpness equivalent of a 2 degree beam width can be achieved. With RezBoost™, you'll see more detailed targets, with less clutter. You will be able to see even small and highly detailed targets such as kayaks and dinghies nicely separated.

  • RezBoost™ standard

  • RezBoost™ Enhanced, MAX setting

NEWBird Mode

Bird echoes Actual scene

DRS4D-NXT features a new bird mode that helps you identify birds gathering around schools of fish at the sea surface. Bird mode adjusts the gain and sea settings automatically for optimal visibility.

NEWFast Target Tracking™

Approaching vessel with target vector

It only takes a few seconds after a target has been selected until a speed and course vector is displayed. With accurate tracking information, estimation of other vessel's course and speed is greatly simplied.
With Fast Target Tracking™ activated, any vessel approaching yours will automatically display a target vector, as well as sound an alarm*. Up to 100 targets can be displayed simultaneously.

*TCPA setting required

  • NXT, Solid-State pulse compression Doppler Radar
  • Revolutionary Target Analyzer™ function instantly identifies hazardous targets
  • Fast Target Tracking™, up to 100 targets
  • RezBoost™ beam sharpening, equivalent to degree beam width open array
  • Compact 24” radome with 25 W output power
  • Bird Mode, track birds to find the best fishing grounds
  • Simple installation, no need to open the radome, external PSU is not required
  • New smart-connector cable for retro fitting existing DRS cable installations
  • No warm-up time

Specifications

ANTENNA

Type

ų610 mm Radome (24")

Beam Width

Horizontal
3.9° typical (-3dB)br style="border: 0px; margin: 0px; padding: 0px; list-style: none outside;" /> Adjustable between 2° and 3.9° br style="border: 0px; margin: 0px; padding: 0px; list-style: none outside;" /> (effective with RezBoost control)/dd>
Vertical
25°

Antenna Rotation Speed

24*/36/48 rpm
* In dual range mode, speed is limited to 24 rpm

RF TRANSCEIVER

Frequency

Ch # P0N (MHz) Q0N (MHz)
1 9380 9400
2 9400 9420
3 9420 9440

Pulselength & PRR

P0N: 0.08 μs to 1.2 μs / 1100 Hz
Q0N: 5 μs to 18 μs / 1100 Hz

Peak Output Power

Solid-state, 25 W

Range Scales

0.0625 to 36* nm
* In dual range mode, range is limited to 12 nm

ARPA TARGET TRACKING

Up to 100 targets

POWER SUPPLY

12-24 VDC: 2.5-1.3 A

ENVIRONMENT

Temperature: -25°C to +55°C
Humidity: 93% or less at +40°C
Waterproofing: IP26

EQUIPMENT LIST

Standard

1. Antenna Unit
RSB-135-115



Option




24" Radome Solid State Doppler Radar DRS4D-NXT

Interconnection Diagram

DRS4D-NXT Interconnection Diagram

This Radar unit is only compatible with NavNet TZtouch/TZtouch2.
NavNet TZtouch requries a software update, slated for release in May 2016, for compatibility.

.
