Furuno DRS4DL+ Radar Dome, 4kw, 19" 36NM (No cable included)

DRS4DL+

Single wire Radar solution

The DRS4DL+ is a , 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree horizontal beamwidth antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.

The DRS4DL+ spins at a fixed 24RPM, and has range scales from 1/8 nm to 36 nm. The DRS4DL+ is designed to work with NavNet TZtouch and TZtouch2 systems. It is not compatible with NavNet 3D.

Fast Target Tracking (TT) / ARPA on the DRS4DL+ manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessel's course and speed is made simple.

*heading sensor required

Features:

• Compact 19" 4kW / 24 RPM / 36NM UHD Radome
• 5.2° horizontal / 25° vertical beamwidth
• Ultra-High Definition (UHD) Digital Radar delivers crystal-clear targets
• "Fast Target Tracking" TT / ARPA provides heading and speed for up to 10 targets (*heading sensor required)
• Advanced auto-adjust settings for Gain/Sea Clutter/Rain Clutter
• Easy installation w/"pigtail" for power & LAN, including 15m signal cable
• 12-24 VDC supplied by ship's mains (no PSU required)
• Lightweight 5.7kg/12.5lbs design
• Low power consumption: 23 Watt TX / 10 Watt STBY
• IPX6 waterproofing & -25°C to 55°C environmental rating
• Compatible with NavNet TZtouch (v5.01 or higher) & TZtouch2 (v5.02 or higher)
• What's in the Box:
  • DRS4DL+-DOME
  • Mounting Hardware
  • Mounting Template
  • Installation Manual

For NavNet TZtouch & TZtouch2

The DRS4DL+ spins at a fixed 24RPM, and has range scales from 1/8 nm to 36 nm. The DRS4DL+ is designed to work with NavNet TZtouch and TZtouch2 systems. It is not compatible with NavNet 3D.

Specifications

ANTENNA

Peak Output Power

4 kW

Type

ø488 mm Radome (19'')

Frequency

9410MHz±30MHz, P0N

Beam Width (Horizontal)

5.2° typical (3 dB)

Beam Width (Vertical)

25°(3 dB)

Range Scales

0.0625 to 36 NM

Antenna Rotation Speed

24 rpm

Weight

5.7 kg

ENVIRONMENT

Temperature

-25°C to +55°C

Waterproofing

IPX6

POWER SUPPLY

Power Supply / Consumption Current

12-24 VDC: 2.1-1.0 A

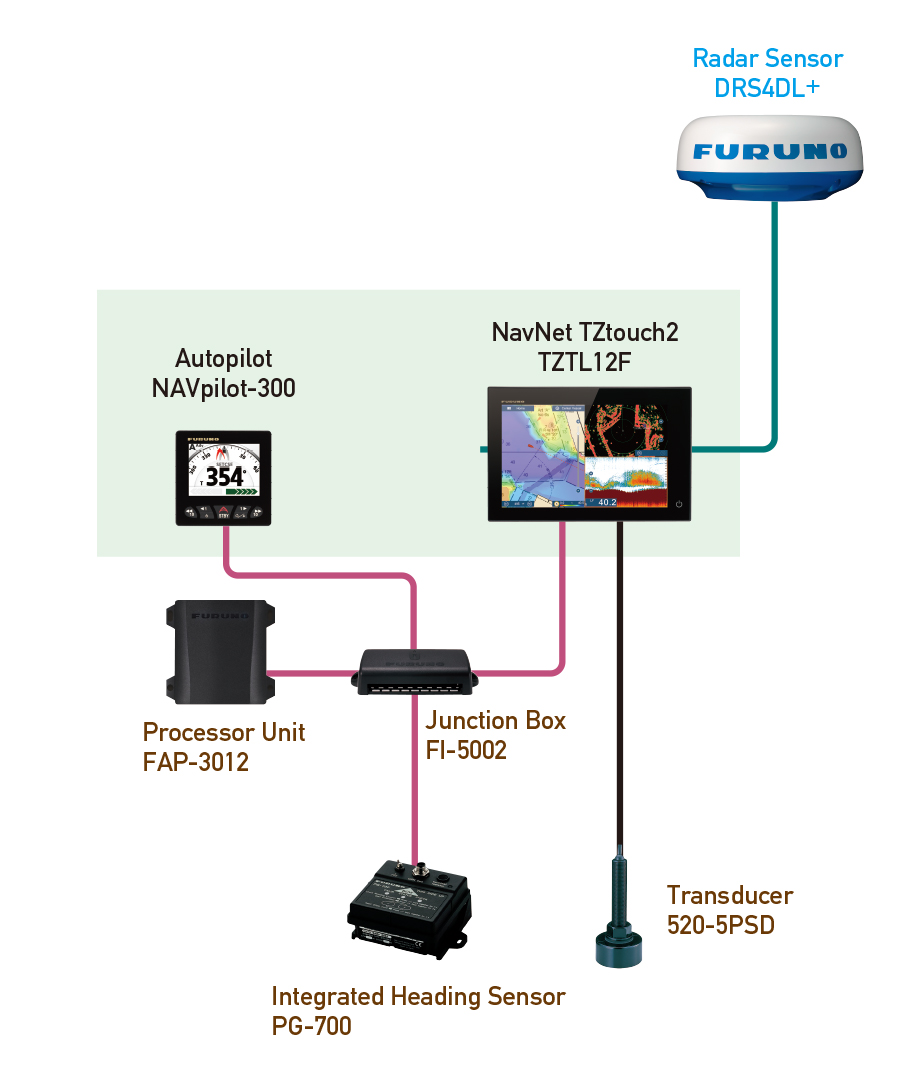

Interconnection Diagram

Documents
