FR-12 Color LCD Marine Radar Display - 12"
The FR-12 12.1" Color LCD Radars are Marine Radar displays consisting of a
dedicated vertical display unit that can be freely combined with Furuno’s
extensive DRS Series Antennas to meet a wide variety of detection needs. These
Radars feature the latest technologies including Risk Visualizer™, a new
function that provides visual information on potential collision areas and
movement of all surrounding vessels, as well as Echo Average, Target Analyzer™,
Fast Target Tracking™, RezBoost™, and many other great functions to help you
keep track of any target for your navigation and operations such as Custom AIS,
User-Programmable function keys and Multi-language support.
Compatible with Furuno’s powerful antenna line-up
The FR-12 is compatible with any of the DRS Series Antennas, allowing for a
variety of configurations. By selecting the detection range (power output),
screen size, and antenna type and size based on what you want to accomplish, you
can build the Radar that best meets your needs.
Compatible DRS antennas:
Radome type:
-
Model DRS2D-NXT
-
Model DRS4D-NXT
-
Model DRS4DL+
Open Array type:
-
Model DRS6A-NXT
-
Model DRS12A-NXT
-
Model DRS25A-NXT
-
Model DRS6A X-Class
-
Model DRS12A X-Class
-
Model DRS25A X-Class

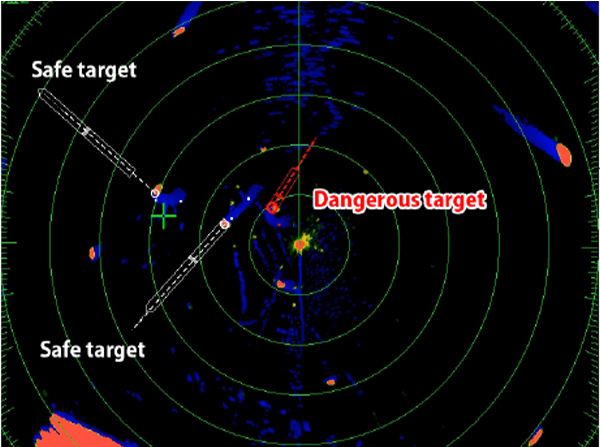

Risk Visualizer™
Risk Visualizer™ is a technology that shows potential collision areas based on
the current position and movement of all surrounding vessels. Thanks to the
on-screen display, it is easy to get a quick and intuitive overview of the
situation around your ship. Additionally, color-coded alerts according to the
threat of a collision, from green (normal) to red (hazardous), will help you
assess the level of danger and plan your next move. This is our first commercial
mid-range Radar to incorporate this feature, which contributes to the continuous
improvement of safety at sea.

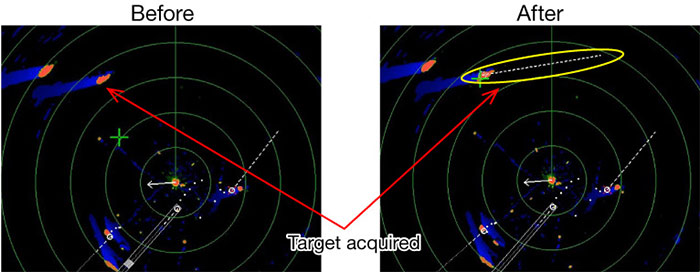

Fast Target Tracking™
Fast Target Tracking™ is a technology that instantaneously displays a vector
indicating the speed and heading of the target. The targets are automatically
tracked from the beginning, making it possible to immediately calculate the
target's trajectory and display the velocity vector.

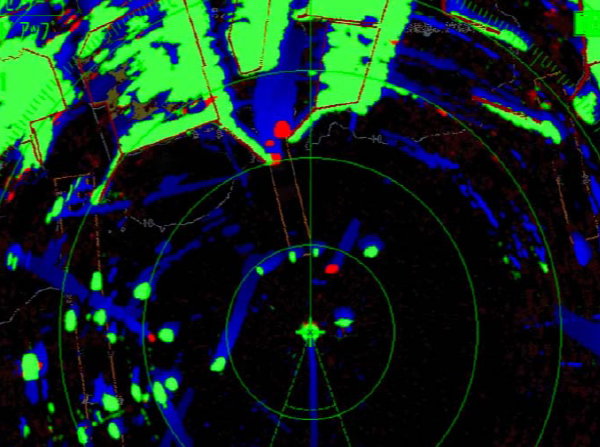

Target Analyzer™
Target Analyzer™ is a technology that analyzes targets and identifies the
dangerous ones that are likely to collide with your ship, using different colors
according to the degree of danger. The display of potentially dangerous targets
in different colors allows an operator to understand threats to safe navigation
at a glance.

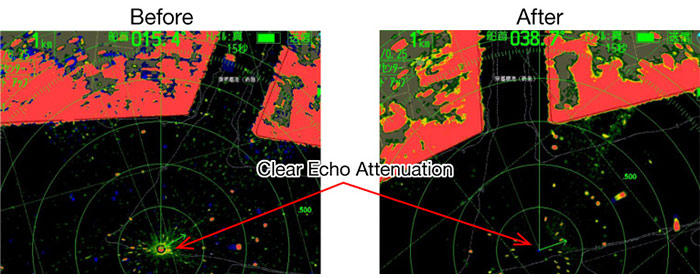

Echo Average
Echo Average is a feature that attenuates irregular echoes, such as reflections
from the sea surface and precipitation, and stabilizes echoes from fishing gear
and other vessels. It makes it easier to see what you want to see, even in poor
weather conditions such as high waves, precipitation, or dense fog.

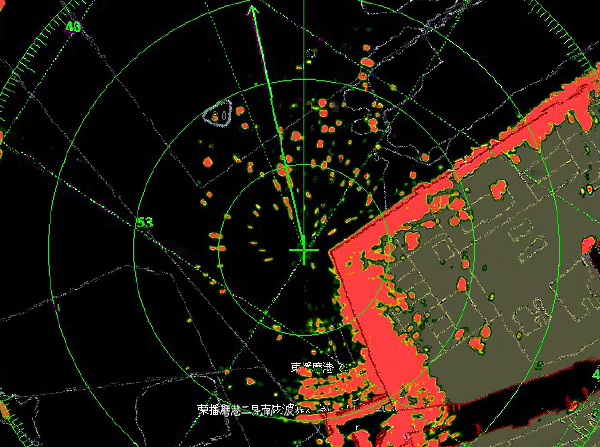

Radar overlay on charts/Share points and lines
The FR-12 can show Radar echoes overlaid on MapMedia MM3D charts. Additionally,
when connected to the GP-3700/F* via Ethernet, marks, and lines can be
displayed.

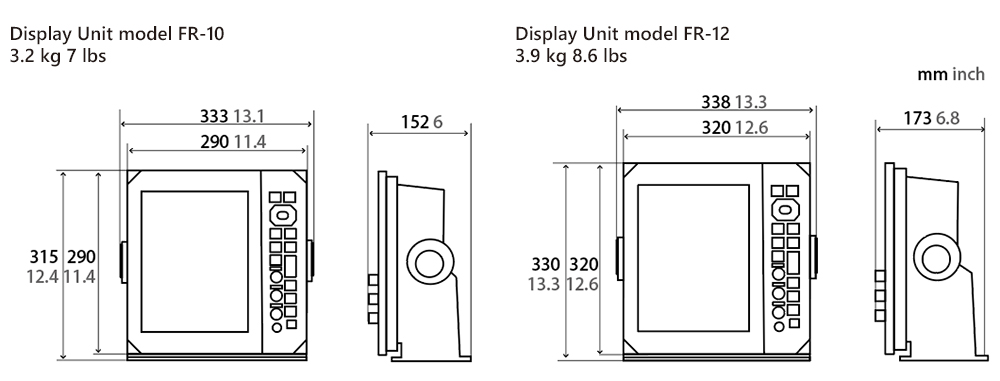

Specifications:
-
Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas)
-
Type: Compatible Antenna Unit: DRS4DL+, DRS2D/4D/6A/12A/25A-NXT, DRS6A/12A/25A
X-Class
-
Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT),
0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class,
DRS12A/25A-NXT)
-
Display Unit: 12.1-inch color LCD
-
Display Mode: Head-up, Course-up, North-up, True motion, Stern-up
-
Other Mode/Functions: Risk Visualizer™, Target Analyzer™, Target Tracking™,
True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on
charts
-
Power Supply/Consumption Current: FR-12: 12-24 VDC: 1.7-0.9 A
Specifications
Display Unit |
Screen Size |
12.1-inch
Colot LCD |
resolution |
1024 x 768
(XGA) |
Antenna Unit |
Range Scale
DRS5DL+ |
0.0625 to
36nm |
Range scale
DRS52DNXT/4DNXT |
0.0625 to
48NM |
Range Scale
DRS6A-NXT |
0.0625 to
72NM |
Range Scale
DRS6A/12A/25A, DRS12ANXT/25A-NXT |
0.0625 to
96nm |
Main Functionalities |
Risk
Visualizer |
Available |
Target
Analyzer |
Available
*Solid State Sensors only |
Target
Tracking |
Available
*Fast Target Tracking |
True Echo
Trail |
Available |
Echo
Average |
Available |
Sub Display
Unit |
Available
*2 Units Max |
AIS Display |
Available |
Radar
Overlay on Charts |
Yes,
requires 01-613-190-00 Chart Kit |

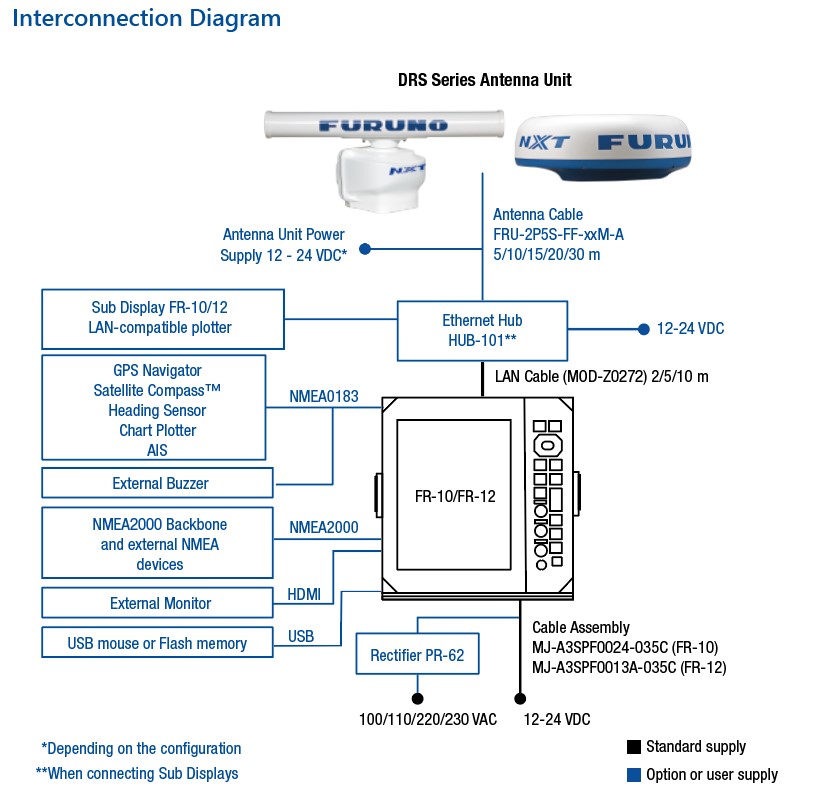

Interface |
Available
ports |
NMEA0183x3,
NMEA2000 x 1, LAN x 1, HDMI Out x 1, USNB x 1 Contact Closure X 1 |
Power Supply |
Volatage |
12-24vDC |
Draw |
1.7/0.9A |
Enviromental Conditions |
Ambient
Temperature |
-15C to
+55C |
Degree of
protection |
Front Panel
IP55, Rear Panel IP22 |
What's in the Box:
- RDP160-E Color LCD Display
- Sun Cover
- Power Cable
- Cable tie
- Flush Mount
- Documentation
- Fuse FGBO-A 250V 2 A PBF
- Tapping Screw 5x20 SUS304 x
4
- Cable Tie x 4
- F Mounting Sponge 10H x 2
- F Mounting Sponge 10V x 2
- Mounting Bracket and Knobs
