Seastar Xtreme NFB Mechanical Steering System, SSX176XX

Seastar Xtreme NFB Mechanical Steering System, SSX176XX




Availability: Usually ships the next business day

Brand New with Factory Warranty

Free Ground shipping to Lower 48 States.

Seastar Xtreme NFB Mechanical Steering System, SSX176XX
tel-ssx176xxList Price: $US 599.00Our Price: $US 433.99
Select Length:

FEATURES
• Smoothest and lowest steering effort mechanical helm offered in the market place yet still offers easy installation.
• Complete steering system including new helm, high efficiency XTREME™ steering cable design and new style bezel.
• Quick connect feature on both steering cable and spent travel tube for easy quick installation.
• Installs in same mounting pattern and bracket location as current SeaStar Solutionsฎ steering systems.
• Smallest footprint possible to accommodate small/tight dash helm stations.
• Made, designed and assembled in the USA.

Includes:

XTREME™ NFB helm, bezel, and hardware kit (SHX7606) with QC steering cable (SSCX64XX).

COMPONENTS

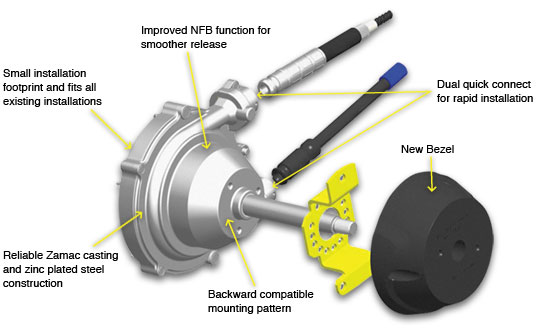

This complete new steering system includes new helm, high efficiency XTREME™ cable
and new-style bezel. It is also available with Sport or Sport Plus tilt mechanism.

New Helm
The patent pending helm has a complete new gear train designed to provide smooth feel,
minimal backlash and low effort at the wheel. It also offers the smoothest NFB clutch release
and has a smaller footprint than the current 4.2 helm. All castings are designed to reduce
weight while offering superior strength.

New Bezel
New style, patent pending, bezel keeping with the design of the SH91900 tilt and hydraulic
helm pump designs.

SSCX Xtreme Cable

Features
• Based on the current industry leading XTREME™ technology
• Splined ridges on the inner liner allow close contact with core
• With minimum contact the core glides freely
• Tight fit for minimal lost motion
• Reduced friction for extended cycle life
• Robust construction support highest steering loads in the mechanical range

A brand new XTREME™ steering cable was designed specifically for this system.
This cable offers lower backlash and is more efficient than a standard steering cable.
It provides the lowest ease of effort, a close “fit” of the core to liner for lowest lost motion.
The concept provides the “tight” fit of core to liner yet allows area for lubrication.
The design of the helm allows higher loads to be placed into the cable requiring this new
design cable. There is a quick connect feature on both the steering cable and spent travel
tube for easy, quick installation.

Patents Pending on Helm, Cable and Bezel.

……………………………………………………………………………………………………………………………….

EASY INSTALLATION

There is a quick connect feature on both the cable and spent travel tube side. You will
notice the normal steering cable installation side marked on the casting for easier identification.
No tools are required to snap the steering cable or spent travel tube in place which means
quicker installation for the boat builder.

No bleeding of hydraulic system or electrical wiring is required. This new system fits the
standard SeaStar Solutionsฎ dash cut out with standard Safe-T and 4.2 bracket. The custom helm
is also available with the SH91800/SH91900 tilt mechanism.

…………………………………………………………………………………………………………………………….

APPLICATION GUIDE

CONFIGURATION HELM BEZEL/TILT/MECHANISM STEERING CABLE NOTES
PART NO. QTY PART NO. QTY PART NO. QTY
Standard Helm NFB SHX7606 1 SBX76061 1 SSCX64XX 1 Add suffix B to part numbers for
bulk items.
Add suffix P to part numbers for
packaged items.
Tilt Helm NFB SHX97606 1 SH91800 1 SSCX64XX 1
Standard Helm Non – NFB
For OEM Applications Only
SHX7626 1 SBX76261 1 SSCX64XX 1
Tilt Helm Non – NFB
For OEM Applications Only
SHX97626 1 SH91800 1 SSCX64XX 1

…………………………………………………………………………………………………………………………….

ORDER GUIDE
Order by Component or Kit

COMPONENT
PART NO. DESCRIPTION OPTIONS
SHX7606 XTREME™ NFB Helm, Bezel and Hardware Kit
SHX97606 XTREME™ Tilt NFB Helm
SHX7626 XTREME™ Non-NFB Helm, Bezel and Hardware Kit For OEM applications only
SHX97626 XTREME™ Tilt Non-NFB Helm For OEM applications only
SSCX64XX XTREME™ QC Steering Cable
SBX76061 XTREME™ Bezel and Hardware Kit NFB
SBX76261 XTREME™ Bezel and Hardware Kit Non-NFB
SSX176XX XTREME™ NFB Steering Kit
SSX177XX XTREME™ Tilt NFB Steering Kit
STANDARD SYSTEM NFB – KIT PART NUMBER SSX176
SHX7606 XTREME™ NFB Helm, Bezel and Hardware Kit
SSCX64XX XTREME™ QC Steering Cable
TILT SYSTEM NFB – Kit part number SSX177
SHX97606 XTREME™ Tilt NFB Helm
SH91800 Sport Tilt Mechanism
SSCX64XX XTREME™ QC Steering Cable
