A COMPLETE STEERING SYSTEM CONSISTS OF:
Steering helm:

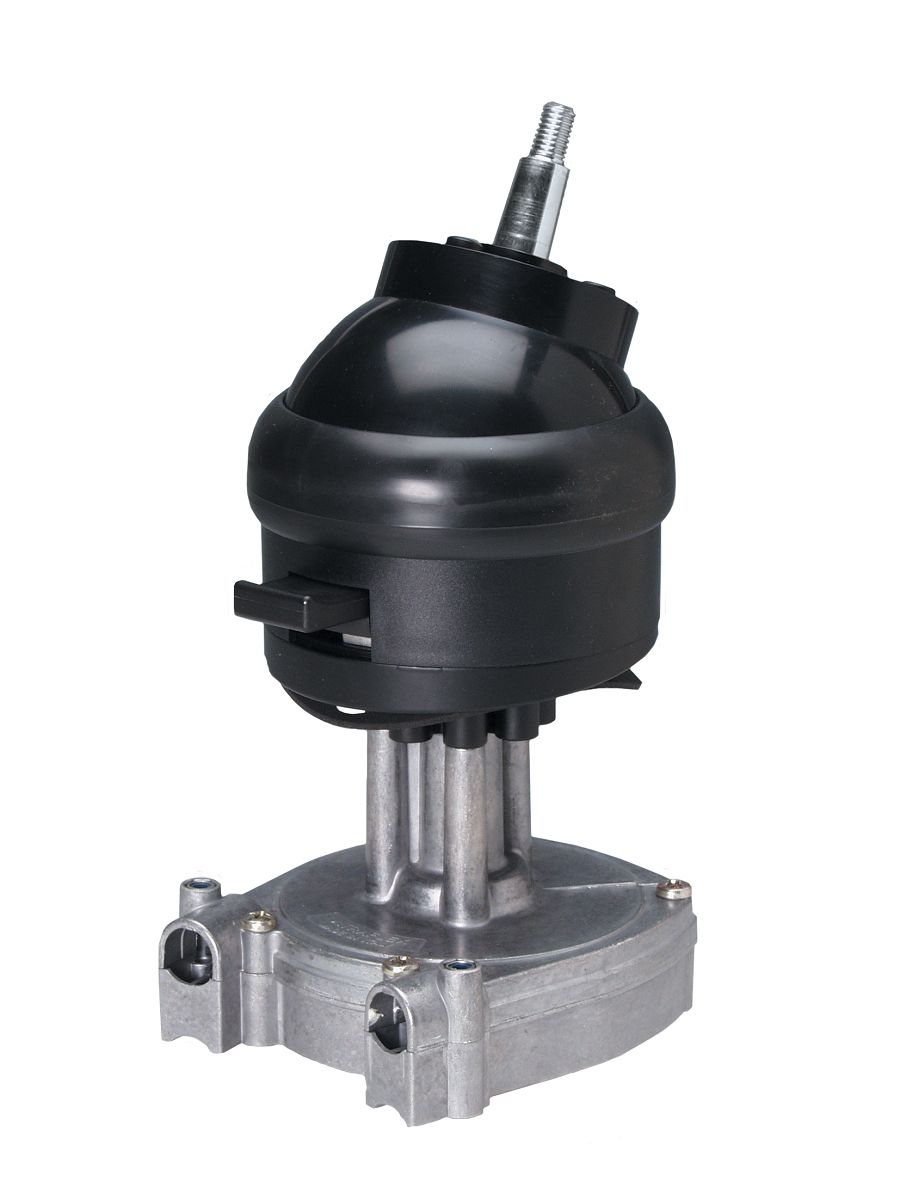

T81FC - 38957J single cable steering helm
T82FC - 38958L dual cable steering helm
T83NRFC - 38959N anti-feedback single cable steering helm
Tilt mechanism: X52 - 39250U
NOTE: X52 tilt mechanism fits Uflex tilt mount rotary and rack
and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except
SilverSteer and MasterDrive steering systems
Steering cable: M66
NOTE: two M66 are needed with the T82FC system
Optional steering wheel
Engine connection kits
FEATURES AND TECHNICAL SPECIFICATIONS:
Tilt range of 48° and five locking positions
Fast connect, simple installation
Tilt device eliminates underdash movement
Standard 3/4 tapered shaft - stainless steel
All stainless steel cable output ends
Corrosion resistant materials
Lock-to-lock steering wheel turns: approx. 3.8
Stroke: 9 (228 mm)
Maximum allowable steering wheel diameter: 16 (406 mm)
Minimum steering cable bend radius: 7.9 (200 mm)
T81FC, T82FC and T83NRFC steering systems are not to be used on boats equipped
with engines that exceed the maximum horsepower rating of the boat
For boats faster than 50 mph our hydraulic steering systems are recommended
Exceeds EN 28848 safety standards
Exceeds ABYC P17 safety standards
Dimension
