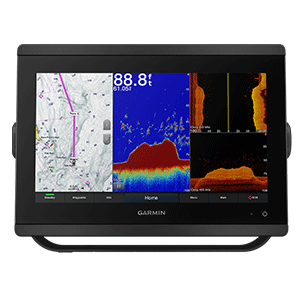

12” Touchscreen Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS)
Display
Features a 12” full HD in IPS touchscreen display
Built-in support for the full suite of Garmin sonar capabilities
Fully network capable with NMEA 2000® connectivity and the Garmin Marine
Network
Includes ANT® technology and Wi-Fi® networking
SmartMode™ station controls enable quick, one-touch access to the
information you need
Serious sport fishermen, cruisers, sailors and sail racers
demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8412xsv
chartplotter/sonar combo delivers MFD performance in a combo-size package. It
features a 12” full HD IPS touchscreen display for wider viewing angles,
superior clarity and sunlight readability, even with polarized sunglasses.
Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm
look or can be mounted flush.
Complete Sonar Support
The GPSMAP 8412xsv chartplotter/sonar combo offers built-in
support for our industry-leading sonar, including dual-channel 1 kW traditional
CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for
Ultra High-Definition scanning sonar (no black box required). It also supports
the entire Panoptix™ all-seeing sonar line (transducers sold separately).
Build Your Marine System
NMEA 2000 networking and the Garmin Marine Network allow you
to easily build your full marine electronics suite — from radar and autopilots
to cameras, instruments and forward-looking sonar — controlled from your
chartplotter and shared across multiple screens. In addition, our exclusive
OneHelm™ system coordinates many third-party manufactured onboard marine
products to bring full control of systems — such as digital switching, lighting,
stabilization and more — conveniently to your chartplotter screen.
Full Connectivity
The GPSMAP 8412xsv chartplotter has a premium-performance
processor that enables fast map drawing, superior networking, video distribution
and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain®
app for access to OneChart™, smart notifications¹, Garmin Quickdraw™ community
data and more. You can also control video streaming from our GC™ 100 wireless
camera and VIRB® action cameras. In addition, built-in ANT wireless technology
connects you directly to our quatix® marine watch, gWind™ Wireless
2 transducer and wireless remote controls.
SmartMode Station Controls
Networked sonar, radar, cameras, media and digital switching
can be independent or incorporated into SmartMode station controls. With
SmartMode, everything is designed to give you quick, one-touch access to the
information you need to ease high-stress situations such as docking.
Special Sailing Features
The Garmin SailAssist™ feature provides data, displays and
prerace guidance to help you gain a competitive edge. Other sailing features
include laylines, enhanced wind rose, heading and course-over-ground lines, true
wind data fields and tide/current/time slider. Gauge displays provide
need-to-know information at a glance, including true and apparent wind angle,
set and drift, true or apparent wind speed, horizontal or vertical graphs and a
data bar with customizable fields.
The Ultimate Connected Boating App
Download the ActiveCaptain app to your smartphone or tablet
to manage your marine experience from anywhere — from trip planning and
prefishing to updating software and purchasing maps.
1When paired with a compatible smartphone
Wi-Fi is a registered trademark of the Wi-Fi
Alliance.
General
Physical dimensions
11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm)
Display size
10.1" x 5.7" (25.7 cm x 14.5 cm)
Display resolution
FHD; 1920 x 1080 pixels
Display type
touchscreen IPS display (anti-glare finish)
Weight
6.2 lbs (2.8 kg)
Water rating
IPX6 and IPX7
Polarized Support
J1939 Compatible
Power consumption
3.1 A
Antenna
Internal or external over NMEA 2000
Mounting options
Bail, flat or flush (Garmin does not offer any hardware or accessories for
a flat-mount installation. Professional tools and knowledge is required.)
