Garmin GPSMAP 9010xsv 10in Multi Function Display Worldwide Basemap and Sonar

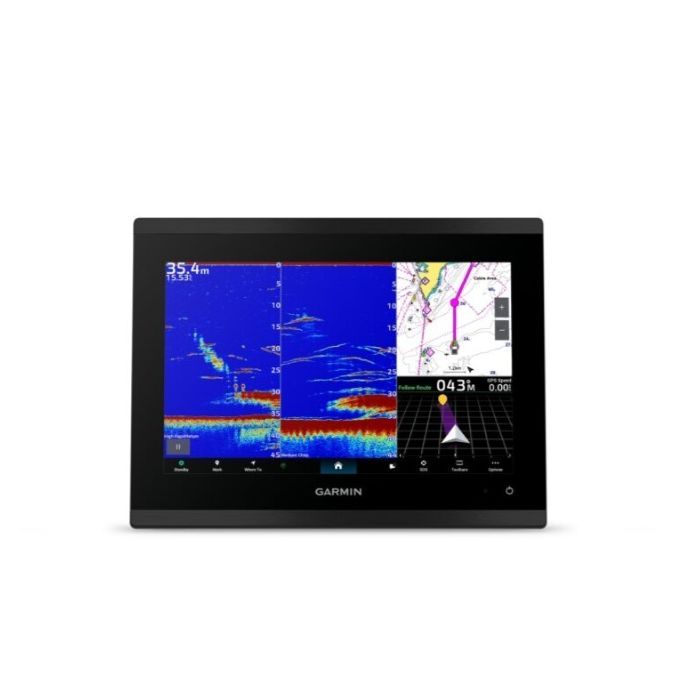

GPSMAP® 9010xsv Premium Chartplotter/Sonar Combo with Worldwide Basemap
PARADISE STARTS HERE
It’s the integrated high-resolution touchscreen chartplotter for captains and
anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass
helm with premium design materials plus our best built-in sonar yet.
Features:
Premium IPS sunlight-readable touchscreen display
Up to 7 times faster processing power than previous generations
See fish like never before with our best sonar ever
Supports Garmin Navionics+™ charts with Auto Guidance+™ technology1
Gigabit speeds on the Garmin Bluenet™ network
Network with multiple chartplotters, cameras, and more
PREMIUM CHARTPLOTTER
The HD IPS sunlight-readable touchscreen display and edge-to-edge design
provide a seamless and luxurious modern look.
FASTER. MUCH FASTER.
Processing power is 7 times faster than previous generations for superior
performance; draw charts quickly, and calculate Auto Guidance+ routes1 with
lightning speed with an optional Garmin Navionics+ subscription.
HIGH-DEFINITION SONAR
Fish in stunning high definition with built-in 1 kW xCHIRP and Garmin
RapidReturn™ sonar.
Excellent target separation helps you see crisp and clear fish targets all
around.
GARMIN BLUENET NETWORK
Build extensive networks with multiple chartplotters, cameras, radars and
sonars — and enjoy gigabit-speed networking.
ENTERTAINMENT OPTIONS
Enjoy audio and video integrations that allow you to show and hear the same
video throughout the screens and speakers on your network.
CONNECT YOUR ECOSYSTEM
Take command through digital system integrations to monitor, automate and
control your vessel. The chartplotter uses the NMEA 2000® network
to connect to your compatible accessories.
Premium Chartplotter
The HD IPS sunlight-readable touchscreen display and edge-to-edge design provide
a seamless and luxurious modern look.
Faster. Much Faster.
Processing power is 7 times faster than previous generations for superior
performance; draw charts quickly, and calculate Auto Guidance+ routes1 with
lightning speed with an optional Garmin Navionics+ subscription.
High-Definition Sonar
Fish in stunning high definition with built-in 1 kW xCHIRP and Garmin
RapidReturn™ sonar. Excellent target separation helps you see crisp and clear
fish targets all around.
Garmin Bluenet Network
Build extensive networks with multiple chartplotters, cameras, radars, and
sonars — and enjoy gigabit-speed
Entertainment Options
Enjoy audio and video integrations that allow you to show and hear the same
video throughout the screens and speakers on your network.
Connect Your Ecosystem
Take command through digital system integrations to monitor, automate, and
control your vessel. The chartplotter uses the NMEA 2000® network to connect to
your compatible accessories.
Connect
Software Updates: Get wireless software updates via the ActiveCaptain® app
with your compatible smartphone or tablet.
Engine Monitoring: Keep tabs on engine performance with extensive engine
integration.
Custom Look: Manufacturers can customize the homepage layout and splash screen
for a brand-tailored experience.
Navigate
Mapping: Navigate with optional Garmin Navionics+ charts that include Auto
Guidance+ technology, daily updates, and more1 (subscription
required).
Premium Charts: Get support for Garmin Navionics Vision+™ charts with premium
relief shading and satellite imagery.
Know Where You Are: Get your precise location with the built-in dual-frequency
10 Hz GPS.
Autopilot: Control the autopilot with any compatible chartplotter on the
network with autopilot integration.
Integrate
Connect Cameras: Get extensive camera support and control to see footage
directly on the chartplotter.
Control with Your Watch: Connect to your chartplotter with your compatible
Garmin smartwatch.
Wireless Connectivity: Connect compatible devices with integrated Bluetooth®
and ANT® technologies.
Fish Mapping: Get comprehensive fishing data with the Fish Mapping™ feature
from SiriusXM® Radio (accessory purchase and subscription required).
Verbal Commands: Use spoken commands to control the chartplotter through your
compatible headset or quatix® smartwatch.
Weather-Resistant: The GPSMAP 9000 chartplotter is built for harsh marine
conditions with an IPX7 water-resistance rating.
What's In The Box?
GPSMAP 9010xsv premium chartplotter
Power cable
Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network
Bail mount with knobs
Flush mount kit
Protective cover
Trim piece snap covers
Documentation
Specifications:
General:
Dimension: 10.24" x 7.87" x 3.54"
Weight: 5.55 lbs
Water Rating: IPX7
Touchscreen: Yes
Display Type: WUXGA, IPS; Edge Lit backlight
Display Size: 8.54" x 5.34" x 10.1" diagonal
Display Resolution: 1920 x 1200 pixels
Mounting Options: Bail, flat, or flush
Input: Touchscreen
Polarized Lens Viewability: Yes
Maps & Memory:
Accepts Data Cards: 2 microSD™ cards (on rear of product)
Waypoints: 5,000
Track Points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100
Sensors:
GPS: Yes
GLONASS: Yes
GALILEO: Yes
BEIDOU: Yes
Has Built-in Receiver: Yes
Receiver: 10 Hz
NMEA 2000 Compatible: Yes
NMEA 0183 Compatible: Yes
Supports WAAS: Yes
Supports Multi-Band, Multi-Constellation GPS: Yes
Chartplotter Features:
Smart Mode Compatible: Yes
AIS: Yes
DSC: Yes
Supports Fusion-Link™ Compatible Radios: Yes
GCV Black Box Sonar Support: Yes
Activecaptain® Compatible: Yes
Supports Voice Commands: Yes
GRID (Garmin Remote Input Device) Compatible: Yes
GRID 20 Compatible: Yes
Wireless Remote Compatible: Yes
Sailing Features: Yes
Spoken Audio Alerts: Yes
Onehelm Support: Yes
Electrical Features:
Power Input: 10 to 32 Vdc
Typical Current Draw at 12Vdc: 2.43A
Maximum Current Draw at 12Vdc: 2.8A
Maximum Power Usage at 10Vdc: 29w
Sonar Features:
Display Sonar: Yes
Power Output: 1 kW
Traditional Sonar (Dual Frequency/Beam): yes (dual 1 kW)
Supports Built-In xCHIRP: Yes
Supports Built-In RapidReturn™: Yes (up to 2x)
Clearvü: Yes
Sidevü: Yes
Panoptix™ Sonar: Yes
Livescope: Yes
Connections:
NMEA 2000® Ports: 1
NMEA 0183 Input (RX) Ports: 1
NMEA 0183 Output (TX) Ports: 1
Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
Video Output Ports: 1 HDMI
J1939 Ports: 1
Garmin Bluenet Networks Ports: 2
USB Ports: yes (1x USB-C)
Bluetooth® Pairing: Yes
ANT® (Connectivity): Yes
Garmin Wi-Fi Network (Local Connection): Yes
Wi-Fi Frequency Bands: 2.4 GHz & 5 GHz
Audio Output: Yes
1Auto Guidance+ is for planning purposes only and does not replace safe
navigation operations
